    snappyHexMesh以及paraview显示问题

    OpenFOAM
    5
    11
    977
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • Y
      Yingdong last edited by

      各位老师大佬,你们好
      我使用blockMesh以及snappyHexMesh生成网格,并用paraview 5.6.0查看网格,做剖面,网格如上图所示。
      我想请问是paraview的显示问题吗,还是网格生成相关参数有问题。
      其二:在snappyHexMeshDict中addLayersControls,设置三层,也没有成果的加入,如下图所示

      请问上述两个问题该如何解决。万分感谢

      Y H C 3 Replies Last reply Reply Quote
      • Y
        Yingdong @Yingdong last edited by

        @李东岳
        请问李老师能答疑吗?感谢
        网格在ansys下查看是没有上述图片网格线重叠交错的。
        如果是paraview5.6.0的显示问题,应该如何调整显示?

        T 1 Reply Last reply Reply Quote
        • T
          Tens 讲师 @Yingdong last edited by

          @yingdong 我对这种一般这样处理

          1. 勾选Use VTK Polyhedron
          2. 截面时取消选择Triangulate the slice
          3. 截面时留一些小误差,比如需要截取X=0的截面,截取X=1e-6的截面
            效果对比:
          Y 1 Reply Last reply Reply Quote
          • Y
            Yingdong @Tens last edited by

            @tens 哈哈啊哈 感谢回复,我用的paraview版本5.6.0没有找到您说的use VTK Polyhedron,除此之外二三点亲测有效,感谢。
            请问您使用的paraview版本是多少呀,第一项的paraview设置在版本5.6.0中是取消了吗?

            T 1 Reply Last reply Reply Quote
            • T
              Tens 讲师 @Yingdong last edited by

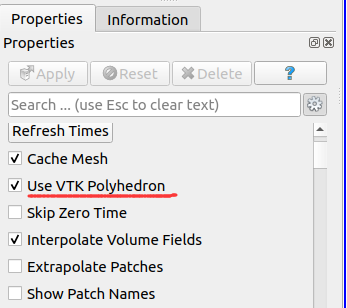

              @yingdong 我用的也是5.6.0,上面选中这个就有了

              Y 1 Reply Last reply Reply Quote
              • Y
                Yingdong @Tens last edited by

                @tens 76280d12-312e-4304-85d7-ac859f6e1aa9-图片.png
                hahah 那是为啥呢,你用的是编译版吗?我使用的绿色版

                T 1 Reply Last reply Reply Quote
                • T
                  Tens 讲师 @Yingdong last edited by

                  @yingdong 可能是吧,我是编译的,你点击右上角齿轮看看有没有

                  Y 1 Reply Last reply Reply Quote
                  • Y
                    Yingdong @Tens last edited by

                    @tens 小齿轮打开也米有

                    李东岳 1 Reply Last reply Reply Quote
                    • 李东岳
                      李东岳 管理员 @Yingdong last edited by

                      @yingdong paraFoam跟paraview略有区别。估计你们一个是paraFoam一个是paraview

                      CFD课程 改成线上了 http://dyfluid.com/class.html
                      CFD高性能服务器 http://dyfluid.com/servers.html

                      1 Reply Last reply Reply Quote
                      • H
                        huiyin @Yingdong last edited by

                        @yingdong
                        在paraview中可以通过取消勾选Decompose polyhedra可解决所说的显示问题,其效果与勾选use VTK Polyhedron相同。

                        1 Reply Last reply Reply Quote
                        • C
                          cccrrryyy 教授 @Yingdong last edited by

                          @yingdong 不要选Triangulate the slice,选Crinkle slice

                          I don't want to survive, I want to thrive.

                          1 Reply Last reply Reply Quote
