    请教下在钝体仿真中为什么网格尺度越小,反而效果越不好

    Algorithm
    3
    13
    1708
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • Z
      Zhoujq last edited by

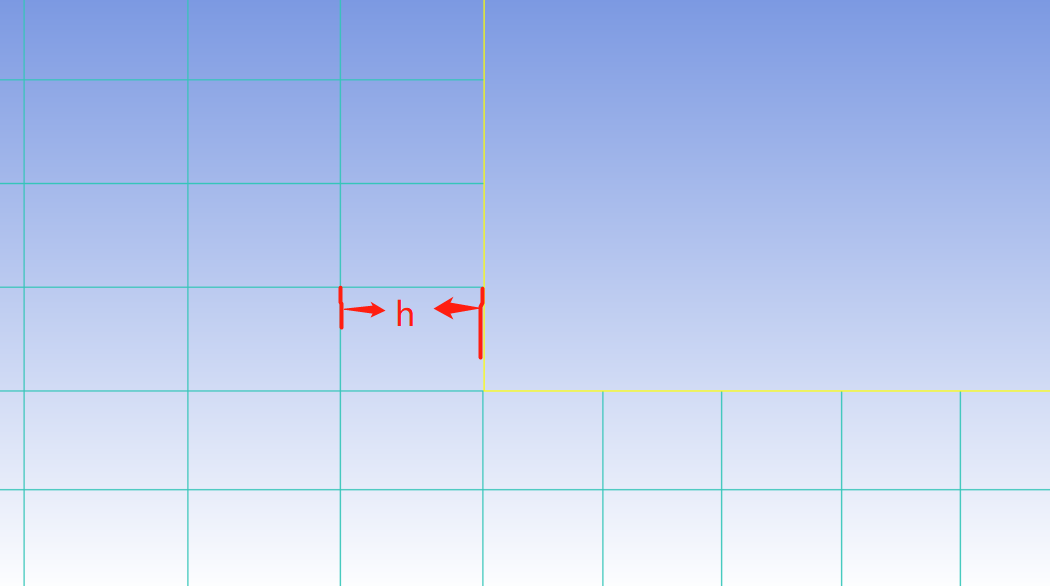

      目前在仿真一个钝提绕流的案例,在这个来流的阻碍面上(图1),它的网格尺度h越小(图2),计算的阻力跟实验值比偏大,当h值稍微大一点,阻力值和实验室相匹配,请教下各位,不是说网格越密越好吗,为什么会出现这种情况呢,非常感谢各位的解答:140:
      图1
      图2

      1 Reply Last reply Reply Quote
      • 李东岳
        李东岳 管理员 last edited by

        它的网格尺度h越小(图2),计算的阻力跟实验值比偏大,当h值稍微大一点,阻力值和实验室相匹配

        有数据的话贴一下数据

        CFD课程 改成线上了 http://dyfluid.com/class.html
        CFD高性能服务器 http://dyfluid.com/servers.html

        Z 1 Reply Last reply Reply Quote
        • Z
          Zhoujq last edited by

          老师,这里的h就是那个阻碍面的网格尺度,这里h的值是从小往大递增的过程,因为整个仿真的计算域是固定的,随着第一层网格尺度越来越大,我们选用1.2的比例递增,整体网格数随之逐渐降低;
          这里涡的大小和阻力系数(Cd)是匹配的,水池实验的值给出的Cd=1.2,当我的Cd=1.21272时,这个涡和水池实验的尺度一样,而当h比较小时,例如 h=0.002时,Cd=1.39偏大,涡也是大的,不知道这是什么情况,需要怎么解释呢?
          非常感谢老师:140:

          1 Reply Last reply Reply Quote
          • Z
            Zhoujq @李东岳 last edited by

            @李东岳 老师,您看这么描述可以不,还有什么需要我补充的不:140:

            1 Reply Last reply Reply Quote
            • 李东岳
              李东岳 管理员 last edited by

              2D RANS?

              CFD课程 改成线上了 http://dyfluid.com/class.html
              CFD高性能服务器 http://dyfluid.com/servers.html

              Z 1 Reply Last reply Reply Quote
              • Z
                Zhoujq @李东岳 last edited by

                @李东岳 对对,老师,就是2D的RNG k-e

                1 Reply Last reply Reply Quote
                • 李东岳
                  李东岳 管理员 last edited by

                  我看你h越小,涡越大,但总不能一直变大。同时你的网格很少,才10000多,你弄到5万,10万,你看能达到一个跟网格分辨率无关的涡大小么

                  CFD课程 改成线上了 http://dyfluid.com/class.html
                  CFD高性能服务器 http://dyfluid.com/servers.html

                  Z 1 Reply Last reply Reply Quote
                  • Z
                    Zhoujq @李东岳 last edited by

                    @李东岳 好的,老师,我试试

                    李东岳 1 Reply Last reply Reply Quote
                    • 李东岳
                      李东岳 管理员 @Zhoujq last edited by

                      @Zhoujq 有什么进展么

                      CFD课程 改成线上了 http://dyfluid.com/class.html
                      CFD高性能服务器 http://dyfluid.com/servers.html

                      Z 1 Reply Last reply Reply Quote
                      • Z
                        Zhoujq @李东岳 last edited by

                        @李东岳 老师,网格加密后,发现了更多的问题,:136:
                        我这个案例一共4种吃水,吃水的影响对于网格的要求特别大,我在加紧做更多的测试,我准备做完后整理成文档,然后我就正式拜师学艺啦,想想都激动,终于快到这个时候了:wolaile:
                        这个前期的准备够长的,本来想做三维的,结果周期太长了,这是个战略上的失误,这次二维的先把规律做出来:xiezuoye:

                        李东岳 1 Reply Last reply Reply Quote
                        • 李东岳
                          李东岳 管理员 @Zhoujq last edited by

                          @Zhoujq 是VOF么。VOF的话2D跟3D区别挺大的。

                          CFD课程 改成线上了 http://dyfluid.com/class.html
                          CFD高性能服务器 http://dyfluid.com/servers.html

                          Z 1 Reply Last reply Reply Quote
                          • Z
                            Zhoujq @李东岳 last edited by

                            @李东岳 是的,老师,是VOF,选用的RNG k-e。
                            目前来看2D的计算快一些,还是有一些规律能总结出来和PIV的数据对比较好,但是中间一些细节的论证还有些问题,和三维确实差距大,尤其是吃水越深差距越大。等我把这些问题解决了,到时候把结果和规律放在这里,同大家一起学习,同时感谢老师的提携和大力的帮助:140:

                            C 1 Reply Last reply Reply Quote
                            • C
                              cresendo @Zhoujq last edited by

                              @Zhoujq 同学你好,期待你的整理,比较关注跟PIV数据的对比(话说能不能额外提供一些细节呢:xinxin2: )

                              1 Reply Last reply Reply Quote
