    柱体+斜柱体,如何画高质量六面体网格?

    Meshy
    2
    3
    217
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • P
      Prometheus10 last edited by

      各位前辈大家好!
      :xinxin:
      我想了有一段时间了,都没有想到比较好的思路。:zoule:

      请教各位前辈,如何画这种几何模型的网格,如何拆分块好一些?前提是想画出类似于blockMesh画单纯的圆柱体那样纯六面体的效果。QQ截图20220118220927.png

      谢谢大家!

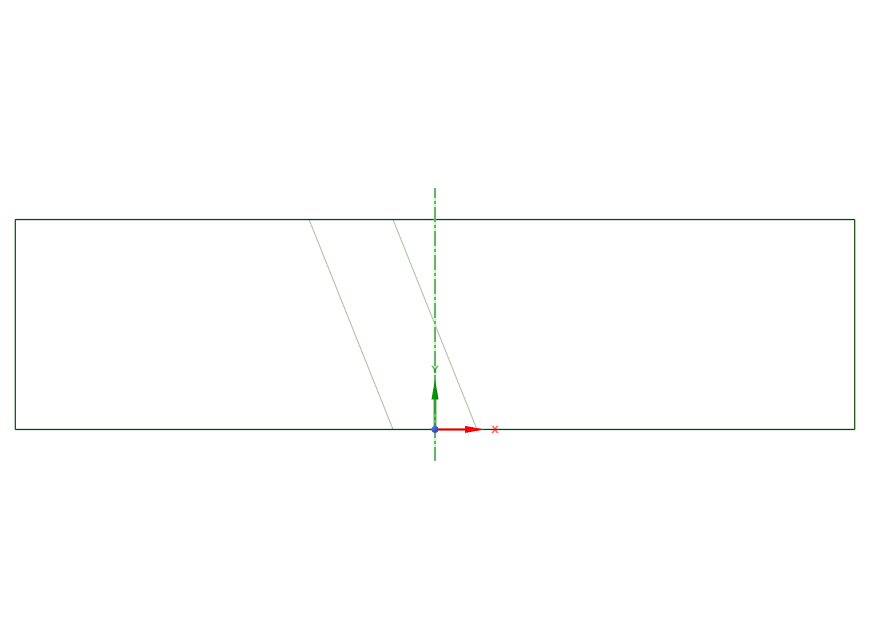

      以下为模型大致示意图:
      Snipaste_2022-01-18_21-59-45.png Snipaste_2022-01-18_22-00-43.png Snipaste_2022-01-18_22-00-00.png

      1 Reply Last reply Reply Quote
      • 李东岳
        李东岳 管理员 last edited by

        你这种的只能歪一点,没别的办法

        CFD课程 改成线上了 http://dyfluid.com/class.html
        CFD高性能服务器 http://dyfluid.com/servers.html

        P 1 Reply Last reply Reply Quote
        • P
          Prometheus10 @李东岳 last edited by

          @李东岳 好的~谢谢东岳老师:xinxin:
