    interFoam模拟微管道中气泡上升,为何气泡不上升?

    OpenFOAM
    3
    11
    485
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • Z
      zhangrx last edited by

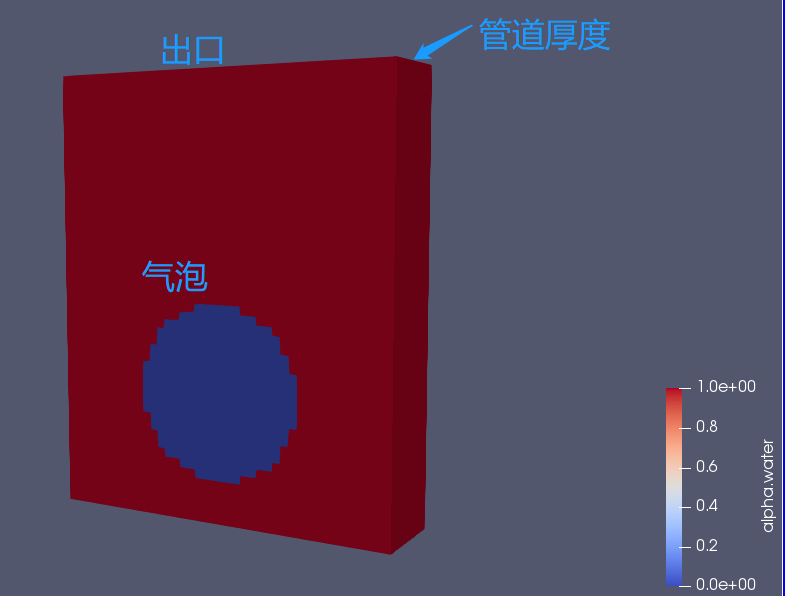

      如图,interFoam,3d模拟气泡在充满水的微管道内上升,上方为出口,其余面为壁面,simga值为0.07。
      管道厚度<200um时,仿真结果中,气泡无法在管道内上升。
      测试了管道厚度分别为1mm、10mm、100mm等,发现厚度在1mm以上的管道,其中的气泡均可上升。

      李东岳 1 Reply Last reply Reply Quote
      • 李东岳
        李东岳 管理员 @zhangrx last edited by

        @zhangrx 3D算例?3D算例的话你这个看起来像是2D的?

        CFD课程 改成线上了 http://dyfluid.com/class.html
        CFD高性能服务器 http://dyfluid.com/servers.html

        Z 2 Replies Last reply Reply Quote
        • Z
          zhangrx @李东岳 last edited by

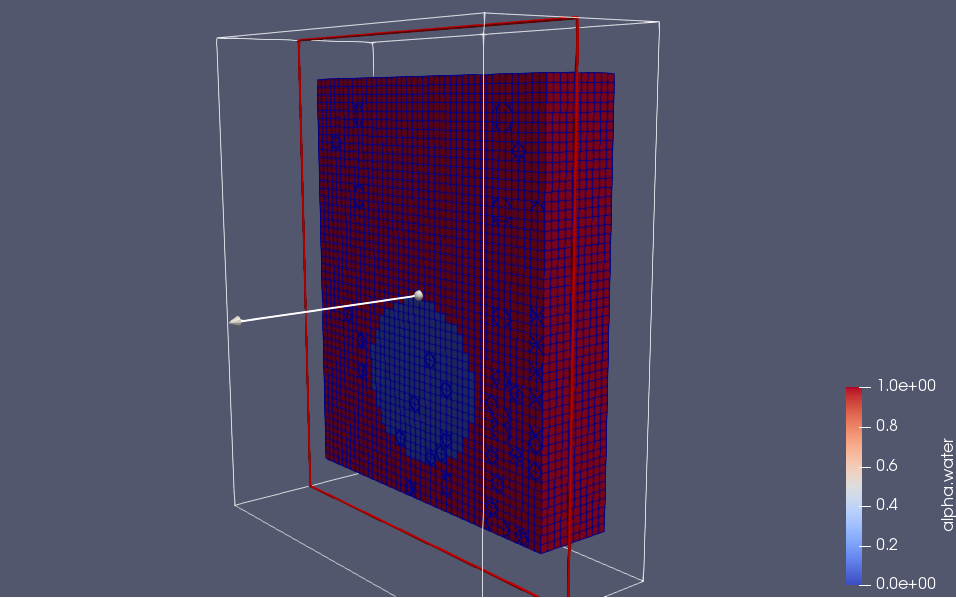

          @李东岳 老师,确实是3D的。气泡上升-mesh.png

          1 Reply Last reply Reply Quote
          • Z
            zhangrx @李东岳 last edited by

            @李东岳 李老师,请问在计算中是否可以设置,周期/非周期地给底面某处流体施加向上的冲击力,从而带动气泡上升?
            实际情况下底部是有不规律(非周期性、受力点位置变化)的冲击力存在的,但不确定没有冲击力的情况下气泡能否自然上升。

            李东岳 1 Reply Last reply Reply Quote
            • 李东岳
              李东岳 管理员 @zhangrx last edited by

              @zhangrx

              1. 你这个3D的话,setFields为什么不setFields成一个球?

              2. alpha润湿角加了么

              3. 很多毛细管里面的气泡就是无法上升的,浮力太小了,你这个是不是注定上升不上去

              CFD课程 改成线上了 http://dyfluid.com/class.html
              CFD高性能服务器 http://dyfluid.com/servers.html

              1 Reply Last reply Reply Quote
              • Z
                zhangrx last edited by

                @李东岳 李老师,您好:

                1. 我这里setFields是sphere,展示的图是沿着球中心做了一个clip,非常抱歉造成的误解;
                2. 提问的算例中没有加润湿角,经老师提醒后,我加了45°的constantAlphaContactAngle,计算后发现气泡可以仍然无法上升;
                3. 关于毛细管中气泡是否的确无法上升,我后面会实验验证一下,有结果再来补充。

                我的实际加工条件下气泡是可以上升的,有可能是因为底部会不定期产生点冲击力,推动气泡上升。如果目前仿真结果是正确的,即单靠浮力不足以使气泡在毛细管中上升,则需要考虑增加冲击力。
                想请教一下老师,是否有办法在仿真中给模型底部壁面处流体施加冲击力呢?

                李东岳 1 Reply Last reply Reply Quote
                • 李东岳
                  李东岳 管理员 @zhangrx last edited by

                  @zhangrx 算例清理一下发上来我给你看看

                  CFD课程 改成线上了 http://dyfluid.com/class.html
                  CFD高性能服务器 http://dyfluid.com/servers.html

                  Z 1 Reply Last reply Reply Quote
                  • Z
                    zhangrx @李东岳 last edited by

                    @李东岳 多谢李老师!文件中放了我的实际模型,流道宽度是100um。1_risingBubble.rar

                    T 1 Reply Last reply Reply Quote
                    • T
                      Tens 讲师 @zhangrx last edited by Tens

                      @zhangrx 刚才看到模型,才发现之前理解错了。如果是这种情况,壁面间隙比较小的话,气泡的浮力不足以克服壁面摩擦力,是有可能是贴在壁面上浮不起来的吧。
                      底部有周期/非周期的冲击力,这个不知道该怎么施加,不过感觉可以给底面一个脉动速度或者脉动压力近似。
                      个人能力有限,纯个人理解,仅供参考

                      1 Reply Last reply Reply Quote
                      • T
                        Tens 讲师 last edited by

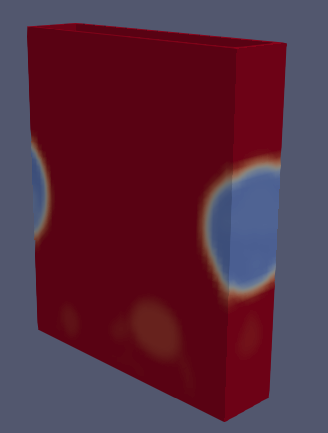

                        我底部给个速度分布,就可以上浮了,应该是可行的,不过速度或压力怎么给还需要再研究一下

                        Z 1 Reply Last reply Reply Quote
                        • Z
                          zhangrx @Tens last edited by

                          @tens 多谢老师!!

                          1 Reply Last reply Reply Quote
