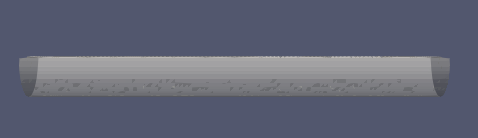

      像这种模型,一半显示流场的流线,一半不显示,在paraview中如何实现呢?
      非常感谢:140:

      T 1 Reply Last reply Reply Quote
      • T
        Tens 讲师 @Zhoujq last edited by

        @zhoujq 有个取巧的办法,Filters→Alphabetical→Extrat Cells By Region,然后截取几何的一半,在这一半区域进行截面,然后画流线。

        Z 1 Reply Last reply Reply Quote
        • Z
          Zhoujq @Tens last edited by

          @tens 非常感谢,好好用:xinxin::146:
