    这种尖角梯形网格画出来应该是啥样的

    Meshy
    2
    3
    446
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • S
      shrine last edited by

      我这画出来一步都算不了,SHM和ICEM正在学习中,想见识下应该是啥样

      李东岳 1 Reply Last reply Reply Quote
      • 李东岳
        李东岳 管理员 @shrine last edited by

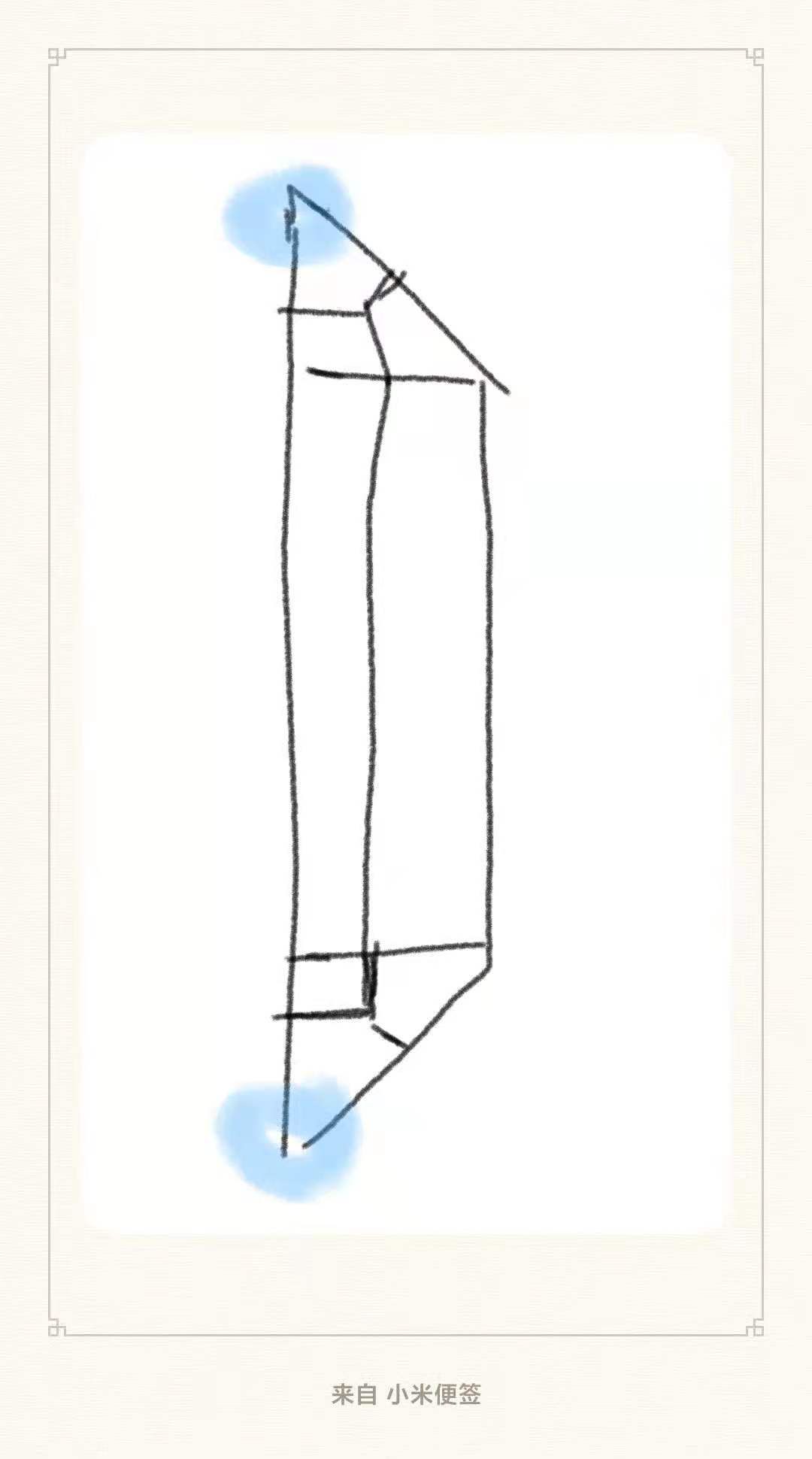

        一般这么划分。但是对于着色的尖角区域,什么方法都不行


        CFD课程 改成线上了 http://dyfluid.com/class.html
        CFD高性能服务器 http://dyfluid.com/servers.html

        S 1 Reply Last reply Reply Quote
        • S
          shrine @李东岳 last edited by

          @李东岳 尖角部位,加一个竖直的翼墙,这样平分后角度好点,但是附近网格不再是水平的,这样对interFoam计算有影响吗?
