    wilcox的turbulence教材中,某一步的导出的困惑。

    Algorithm
    2
    3
    669
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • L
      Leon Zhao last edited by

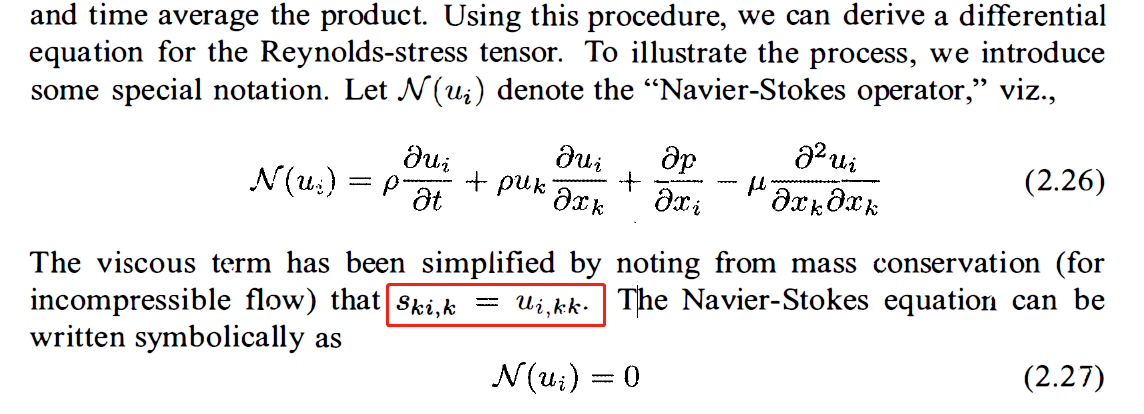

      各位大佬,在wilcox turbulence modeling for CFD 教材中,chapter 2.4 ,page -41中,如图所示,红框部分小弟理解不上去,请问书中这一步红线部分是从哪里来的,下标ki,k 和 i,kk代表什么,小弟没有理解上去,有没有大佬可以指点一二,浪费大家时间了,不胜感激。QQ图片20201116172507.png

      Carpe Diem

      1 Reply Last reply Reply Quote
      • 李东岳
        李东岳 管理员 last edited by

        第一个下标表示分量,第二个下标表示导数。
        \begin{equation}\notag
        s_{12,1}=\frac{\p s_{12}}{\p x}=u_{2,11}=\frac{\p}{\p x}\left(\frac{\p u_2}{\p x}\right)
        \end{equation}

        CFD课程 改成线上了 http://dyfluid.com/class.html
        CFD高性能服务器 http://dyfluid.com/servers.html

        L 1 Reply Last reply Reply Quote
        • L
          Leon Zhao @李东岳 last edited by

          @李东岳 感谢李老师的回复,一下子就通透了

          Carpe Diem

          1 Reply Last reply Reply Quote
