New scalar in phaseModel.c

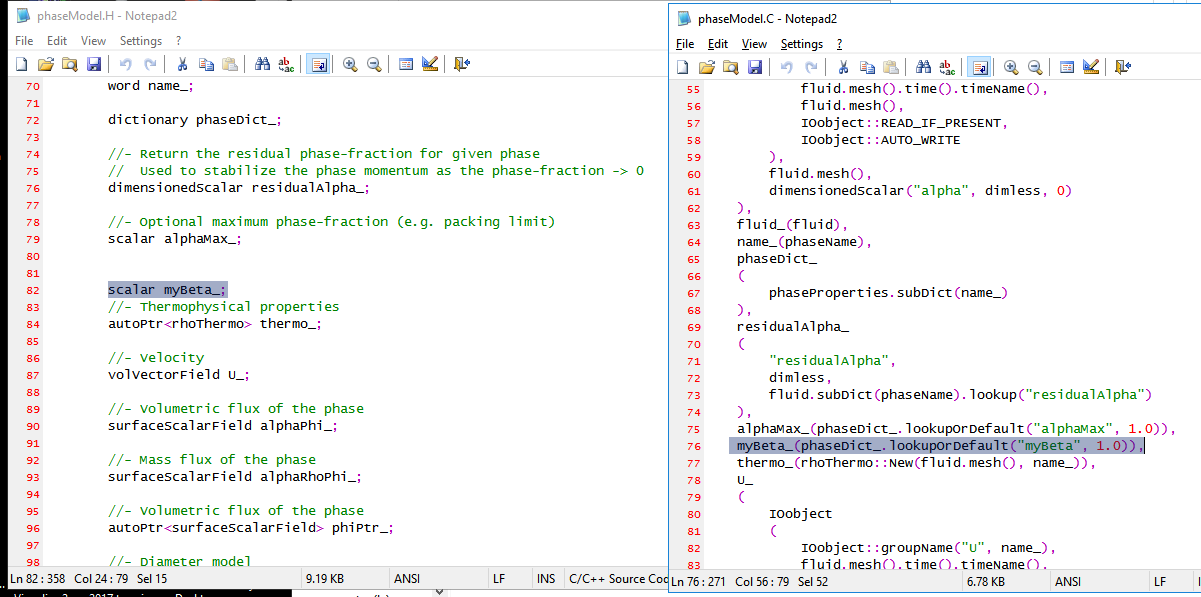

  • I added a new scalar in twophasesystem/phaseModel.C and I compiled successfully. The problem is that there is an error when I run the case. My objective is to use this constant in phasePair.C to calculate Re(). In oder to change the constant myBeta directly from dictionary (phaseProperties) without compiling every time, I think it is necessary to add a new scalar like alphaMax in phaseModel.C. Do you have any tip?

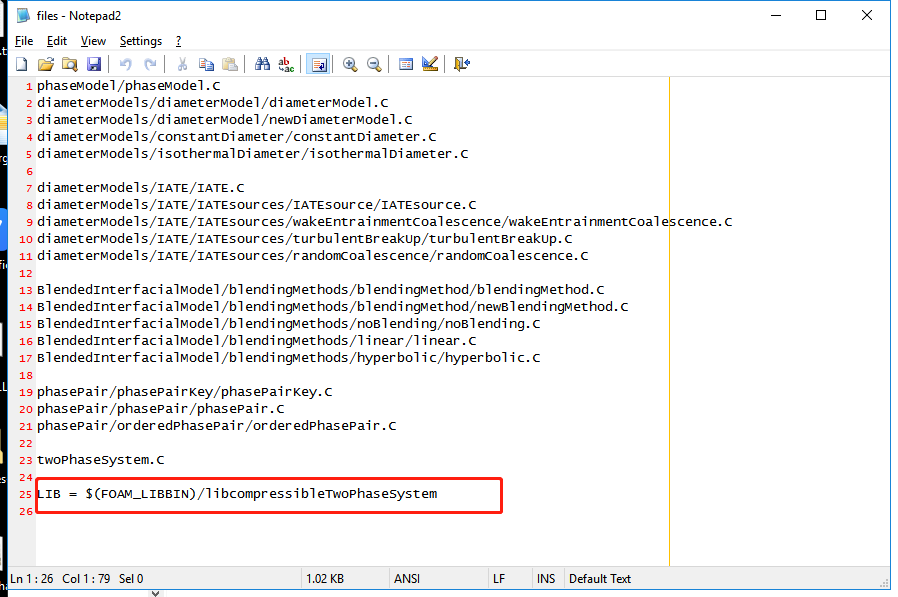

    WeChat Screenshot_20200805132232.png WeChat Screenshot_20200805132154.png



  • Anybody has advice? Thanks a lot.



  • After I compiled it successfully, it crashed with the following error:
    Any suggestion?

    Backtrace:
            ZN10StackTraceC1Ev [0x705c1465+0x25]
                     module: J:\blueCFD-Core-2017\ThirdParty-5.x\platforms\mingw_w64GccDPInt32\lib\libstack_trace.dll
            ZN4Foam5error10printStackERNS_7OstreamE [0x1201d88+0x218]
                     module: J:\blueCFD-Core-2017\OpenFOAM-5.x\platforms\mingw_w64GccDPInt32Opt\lib\libOpenFOAM.dll
            ZN4Foam7sigSegv14sigSegvHandlerEi [0x1203983+0x33]
                     module: J:\blueCFD-Core-2017\OpenFOAM-5.x\platforms\mingw_w64GccDPInt32Opt\lib\libOpenFOAM.dll
            (No symbol) [0x404967]
                     module: J:\blueCFD-Core-2017\ofuser-of5\platforms\mingw_w64GccDPInt32Opt\bin\slurryplateoldPDtest.exe
            _C_specific_handler [0x7ff921376506+0x96]
                     module: C:\Windows\SYSTEM32\ntdll.dll
            0_chkstk [0x7ff92138a49d+0x11d]
                     module: C:\Windows\SYSTEM32\ntdll.dll
            RtlImageNtHeaderEx [0x7ff92131fd43+0x483]
                     module: C:\Windows\SYSTEM32\ntdll.dll
            KiUserExceptionDispatcher [0x7ff92138960a+0x3a]
                     module: C:\Windows\SYSTEM32\ntdll.dll
            (No symbol) [0x47e6ac]
                     module: J:\blueCFD-Core-2017\ofuser-of5\platforms\mingw_w64GccDPInt32Opt\bin\slurryplateoldPDtest.exe
            (No symbol) [0x4013f7]
                     module: J:\blueCFD-Core-2017\ofuser-of5\platforms\mingw_w64GccDPInt32Opt\bin\slurryplateoldPDtest.exe
            (No symbol) [0x40152b]
                     module: J:\blueCFD-Core-2017\ofuser-of5\platforms\mingw_w64GccDPInt32Opt\bin\slurryplateoldPDtest.exe
            BaseThreadInitThunk [0x7ff9211584d4+0x14]
                     module: C:\Windows\System32\KERNEL32.DLL
            RtlUserThreadStart [0x7ff92134e871+0x21]
                     module: C:\Windows\SYSTEM32\ntdll.dll



  • @kimy Your code is based on windows openfoam, I am not an expert on that field and cannot help you :135:



  • Sorry for that. I copied the linux error message!

    Calculating face flux field phi.water
    Selecting diameterModel for phase water: constant
    Selecting turbulence model type RAS
    Selecting RAS turbulence model diffusionkEpsilon
    RAS
    {
        RASModel        diffusionkEpsilon;
        turbulence      on;
        printCoeffs     on;
        Cmu             0.09;
        C1              1.44;
        C2              1.92;
        C3              0;
        sigmak          1;
        sigmaEps        1.3;
        mysigmake       1;
    }

    [3] #0  [4] #0  Foam::error::printStack(Foam::Ostream&)[12] #0  Foam::error::printStack(Foam::Ostream&)[16] #0  Foam::error::printStack(Foam::Ostream&)[19] #0  Foam::error::printStack(Foam::Ostream&)[22] #0  Foam::error::printStack(Foam::Ostream&)[26] #0  Foam::error::printStack(Foam::Ostream&)Foam::error::printStack(Foam::Ostream&)[10] #0  [13] #0  Foam::error::printStack(Foam::Ostream&)Foam::error::printStack(Foam::Ostream&)[25] #0  Foam::error::printStack(Foam::Ostream&)[27] #0  Foam::error::printStack(Foam::Ostream&)[21] #0  Foam::error::printStack(Foam::Ostream&)[29] #0  [14] #0  Foam::error::printStack(Foam::Ostream&)[11] #0  Foam::error::printStack(Foam::Ostream&)Foam::error::printStack(Foam::Ostream&)[1] #0  Foam::error::printStack(Foam::Ostream&)Selecting default blending method: none
    Selecting dragModel for (solids in water): SchillerNaumann
    Selecting swarmCorrection for (solids in water): none
    [28] #0  [15] #0  [18] #0  [20] #0  Foam::error::printStack(Foam::Ostream&)[9] #0  Foam::error::printStack(Foam::Ostream&)Foam::error::printStack(Foam::Ostream&)Foam::error::printStack(Foam::Ostream&)Foam::error::printStack(Foam::Ostream&)[24] #0  Foam::error::printStack(Foam::Ostream&)[17] #0  Foam::error::printStack(Foam::Ostream&)[0] #0  Foam::error::printStack(Foam::Ostream&)[5] #0  Foam::error::printStack(Foam::Ostream&)[23] #0  Foam::error::printStack(Foam::Ostream&)[2] #0  Foam::error::printStack(Foam::Ostream&)[6] #0  [7] #0  Foam::error::printStack(Foam::Ostream&)Foam::error::printStack(Foam::Ostream&)[8] #0  Foam::error::printStack(Foam::Ostream&) at ??:?
    [0] #1  Foam::sigSegv::sigHandler(int) at ??:?
     at [3] #1  Foam::sigSegv::sigHandler(int)??:?
     at ??:?
     at  at ??:?
    ??:?
     at ??:?
    [4] #1  Foam::sigSegv::sigHandler(int) at ??:?
     at [10] #1  Foam::sigSegv::sigHandler(int) at ??:?
    [13] #1  Foam::sigSegv::sigHandler(int) at ??:?
     at ??:?
    [2] #1  Foam::sigSegv::sigHandler(int)??:?
     at  at [11] #1  Foam::sigSegv::sigHandler(int)??:?
    ??:?
    [14] #1  Foam::sigSegv::sigHandler(int) at ??:?
     at ??:?
    [28] #1  Foam::sigSegv::sigHandler(int)[24] #1  Foam::sigSegv::sigHandler(int)[26] #1  Foam::sigSegv::sigHandler(int)[16] #1  Foam::sigSegv::sigHandler(int)[18] #1  Foam::sigSegv::sigHandler(int)[27] #1  Foam::sigSegv::sigHandler(int)[22] #1  Foam::sigSegv::sigHandler(int)[25] #1  Foam::sigSegv::sigHandler(int) at ??:?
    [12] #1  Foam::sigSegv::sigHandler(int) at ??:?
    [29] #1  Foam::sigSegv::sigHandler(int) at ??:?
    [21] #1  Foam::sigSegv::sigHandler(int) at ??:?
     at [23] #1  Foam::sigSegv::sigHandler(int)??:?
    [6] #1  Foam::sigSegv::sigHandler(int) at ??:?
    [5] #1  Foam::sigSegv::sigHandler(int) at ??:?
     at ??:?
     at ??:?
     at ??:?
     at ??:?
    [7] #1  Foam::sigSegv::sigHandler(int)[9] #1  Foam::sigSegv::sigHandler(int)[15] #1  Foam::sigSegv::sigHandler(int)[20] #1  Foam::sigSegv::sigHandler(int)[1] #1  Foam::sigSegv::sigHandler(int) at ??:?
     at ??:?
     at [17] #1  Foam::sigSegv::sigHandler(int)??:?
    [8] #1  Foam::sigSegv::sigHandler(int)[19] #1  Foam::sigSegv::sigHandler(int) at ??:?
    [0] #2  ? at ??:?
    [11] #2  ? at ??:?
    [3] #2  ? at ??:?
    [4] #2  ? at ??:?
    [6] #2  ? at ??:?
    [18] #2  ? at ??:?
    [13] #2  ? at ??:?
    [21] #2  ? at ??:?
    [28] #2  ? at ??:?
    [2] #2  ? at ??:?
    [29] #2  ? at ??:?
    [8] #2  ? at ??:?
    [25] #2  ? at ??:?
    [24] #2  ? at ??:?
    [7] #2  ? at ??:?
    [12] #2  ? at ??:?
    [5] #2  ? at ??:?
    [20] #2  ? at ??:?
     at ??:?
    [26] #2  ?[27] #2  ? at ??:?
     at [22] #2  ???:?
    [14] #2  ? at ??:?
    [1] #2  ? at ??:?
    [19] #2  ? at ??:?
    [10] #2  ? at ??:?
    [23] #2  ? at ??:?
    [15] #2  ? at ??:?
    [17] #2  ? at ??:?
    [16] #2  ? at ??:?
    [9] #2  ? in /lib64/libc.so.6
    [0] #3   in /lib64/libc.so.6
    [3] #3   in /lib64/libc.so.6
    [21] #3   in /lib64/libc.so.6
    [28] #3   in /lib64/libc.so.6
    [18] #3   in /lib64/libc.so.6
    [11] #3   in /lib64/libc.so.6
    [6] #3   in /lib64/libc.so.6
    [4] #3   in /lib64/libc.so.6
    [13] #3   in /lib64/libc.so.6
    [25] #3   in /lib64/libc.so.6
    [29] #3   in /lib64/libc.so.6
    [2] #3   in /lib64/libc.so.6
    [7] #3   in /lib64/libc.so.6
    [9] #3   in /lib64/libc.so.6
    [12] #3   in /lib64/libc.so.6
    [8] #3   in /lib64/libc.so.6
    [24] #3   in /lib64/libc.so.6
    [20] #3   in /lib64/libc.so.6
    [27] #3   in /lib64/libc.so.6
    [10] #3   in /lib64/libc.so.6
    [22] #3   in /lib64/libc.so.6
    [1] #3   in /lib64/libc.so.6
    [26] #3   in /lib64/libc.so.6
    [23] #3   in /lib64/libc.so.6
    [19] #3   in /lib64/libc.so.6
    [14] #3   in /lib64/libc.so.6
    [17] #3   in /lib64/libc.so.6
    [16] #3   in /lib64/libc.so.6
    [5] #3   in /lib64/libc.so.6
    [15] #3  ?????????????????????????????? at ??:?
    [21] #4  __libc_start_main at ??:?
    [3] #4  __libc_start_main at ??:?
    [4] #4  __libc_start_main at ??:?
    [6] #4  __libc_start_main at ??:?
    [11] #4  __libc_start_main at ??:?
    [0] #4  __libc_start_main at ??:?
    [18] #4  __libc_start_main at ??:?
    [29] #4  __libc_start_main at ??:?
    [2] #4  __libc_start_main at ??:?
    [13] #4  __libc_start_main at ??:?
    [28] #4  __libc_start_main at ??:?
    [22] #4  __libc_start_main at ??:?
    [27] #4  __libc_start_main at ??:?
    [12] #4  __libc_start_main at ??:?
    [7] #4  __libc_start_main at ??:?
    [24] #4  __libc_start_main at ??:?
    [20] #4  __libc_start_main at ??:?
    [8] #4  __libc_start_main at ??:?
    [25] #4  __libc_start_main at ??:?
    [9] #4  __libc_start_main at ??:?
    [14] #4  __libc_start_main at ??:?
    [10] #4  __libc_start_main at ??:?
    [5] #4  __libc_start_main at ??:?
    [23] #4  __libc_start_main at ??:?
    [16] #4  __libc_start_main at ??:?
    [26] #4  __libc_start_main at ??:?
    [19] #4  __libc_start_main at ??:?
    [1] #4  __libc_start_main at ??:?
    [17] #4  __libc_start_main at ??:?
    [15] #4  __libc_start_main in /lib64/libc.so.6
    [21] #5   in /lib64/libc.so.6
    [3] #5   in /lib64/libc.so.6
    [11] #5   in /lib64/libc.so.6
    [29] #5   in /lib64/libc.so.6
    [4] #5   in /lib64/libc.so.6
    [0] #5   in /lib64/libc.so.6
    [18] #5   in /lib64/libc.so.6
    [28] #5   in /lib64/libc.so.6
    [2] #5   in /lib64/libc.so.6
    [6] #5   in /lib64/libc.so.6
    [13] #5   in /lib64/libc.so.6
    [22] #5   in /lib64/libc.so.6
    [27] #5   in /lib64/libc.so.6
    [20] #5   in /lib64/libc.so.6
    [23] #5   in /lib64/libc.so.6
    [14] #5   in /lib64/libc.so.6
    [8] #5   in /lib64/libc.so.6
    [25] #5   in /lib64/libc.so.6
    [10] #5   in /lib64/libc.so.6
    [5] #5   in /lib64/libc.so.6
    [24] #5   in /lib64/libc.so.6
    [12] #5   in /lib64/libc.so.6
    [9] #5   in /lib64/libc.so.6
    [16] #5   in /lib64/libc.so.6
    [19] #5   in /lib64/libc.so.6
    [26] #5   in /lib64/libc.so.6
    [7] #5   in /lib64/libc.so.6




  • Selecting default blending method: none
    Selecting dragModel for (solids in water): SchillerNaumann
    Selecting swarmCorrection for (solids in water): none
    #0  Foam::error::printStack(Foam::Ostream&) at ??:?
    #1  Foam::sigSegv::sigHandler(int) at ??:?
    #2  ? in /lib64/libc.so.6
    #3  ? at ??:?
    #4  __libc_start_main in /lib64/libc.so.6
    #5  ? at ??:?
    Segmentation fault (core dumped)



  • Linux讲师 OpenFOAM讲师

    I guess you use myBeta_ just like alphaMax: myBeta(), or just by its name?
    the position where you put the declaration of myBeta_ shows that myBeta_ is a private variable.
    myBeta_(phaseDict_.lookuporDefault("myBeta", 1.0)), is OK, because it's just initialization.

    you should define a member function to return a private variable just like alphaMax().

    the errors seems like lost address of something. Maybe the private variable's address without authority.



  • @bestucan Thanks. I defined "myBeta" according to the definition of alphaMax in all positions where it occurs.
    Also

            scalar alphaMax() const
            {
                return alphaMax_;
            }

            scalar myBeta() const
            {
                return myBeta_;
            }



  • Linux讲师 OpenFOAM讲师

    @kimy try this way: just define myBeta_ and do not use it.

    see is there any error. if not, the errors are caused by function myBeta().
    otherwise, keep on delete the part of code you added until the errors disapear.
    you'll find the "error" code.

    if the error occurs after you delete all the modification. you should check the makefile.

    principle: make sure origin code works well. then, add your code slowly. (add one or two lines and run it )
    so it's easy find which part of code is wrong.



  • I really don't know why the error always happen in which I did not used myBeta only definition. Even thought, I only added one piece of codes, such as "scalar myBeta". The same error occurs. Could you please help me to try to define one scalar in those file and see what will happen? Really thanks for your help!


  • Linux讲师 OpenFOAM讲师

    here is diff result of lib file and case file compared with origin files.
    diff.zip

    output:

    PIMPLE: Iteration 1
    alphaMax():0.62alphaMax lue lue lue lue lue lue
    alphamyBeta():1.23myBeta ha ha ha ha ha ha ha ha
    alphaMax():1alphaMax lue lue lue lue lue lue
    alphamyBeta():1myBeta ha ha ha ha ha ha ha ha
    MULES: Solving for alpha.particles
    MULES: Solving for alpha.air
    particles fraction, min, max = 0.275003 0 0.55
    air fraction, min, max = 0.724997 0.45 1
    Phase-sum volume fraction, min, max = 1 1 1
    alphaMax():0.62alphaMax lue lue lue lue lue lue
    alphamyBeta():1.23myBeta ha ha ha ha ha ha ha ha
    alphaMax():1alphaMax lue lue lue lue lue lue
    alphamyBeta():1myBeta ha ha ha ha ha ha ha ha



    my way(without mention the modification shown in diff file ):

    1. copy entire multiphaseEulerFoam into $FOAM_RUN/applications/solvers (bu not ./Allwamke)
    can@x260-TC ~/Documents/code/C/openfoam/can-8/applications/solvers %tree -L 2                                                                                                                      (git)-[master]-
    .
    └── multiphaseEulerFoam
        ├── Allwclean
        ├── Allwmake
        ├── functionObjects
        ├── include
        ├── interfacialCompositionModels
        ├── interfacialModels
        ├── multiphaseCompressibleMomentumTransportModels
        ├── multiphaseEulerFoam
        ├── multiphaseThermophysicalTransportModels
        └── phaseSystems

    9 directories, 2 files

    1. find and replace all $(FOAM_LIBBIN) with $(FOAM_USER_LIBBIN)
    find ./ -type f -exec sed -i 's/\$(FOAM_LIBBIN)/\$(FOAM_USER_LIBBIN)/' {} \;

    1. enter phaseSystems run wmake to build libmyphaseSystem.so
    2. enter multiphaseEulerFoam run wmake(not ./Allwamke) to build solver mymultiphaseEulerFoam
    3. run the case


  • @bestucan Many Thanks. I have a confusion that you defined the following two scalar and function in phaseModel.H

    <         scalar myBeta_;
    195,196d193
    <
    <         scalar myBeta() const;


    While in original file, according to the definition of alphaMax

            scalar myBeta() const
           {
                return myBeta_;
            }


    and you put this code in phaseModel.C ?

    /home/can/.local/share/OpenFOAM/OpenFOAM-8/applications/solvers/multiphase/multiphaseEulerFoam/phaseSystems/phaseModel/phaseModel/phaseModel.C
    88,89c88
    <     alphaMax_(fluid.subDict(phaseName).lookupOrDefault("alphaMax", 1.0)),
    <     myBeta_(fluid.subDict(phaseName).lookupOrDefault("myBeta", 1.0))
    ---
    >     alphaMax_(fluid.subDict(phaseName).lookupOrDefault("alphaMax", 1.0))
    143,147d141
    < }
    <
    < Foam::scalar Foam::phaseModel::myBeta() const
    < {
    <     retu


  • Linux讲师 OpenFOAM讲师

    @kimy yes, declaration in .H file and definition in .C file.

    declaration of function myBeta() in phaseModel.H

    //- Return the maximum phase-fraction (e.g. packing limit)
            scalar alphaMax() const;
            scalar myBeta() const;


    and definition of function myBeta() in phaseModel.C

    Foam::scalar Foam::phaseModel::alphaMax() const
    {
        return alphaMax_;
    }

    Foam::scalar Foam::phaseModel::myBeta() const
    {
        return myBeta_;
    }



  • @bestucan But why alphaMax() was originally defined in the phaseModel.H without any error?

            scalar alphaMax() const
            {
                return alphaMax_;
            }


    After I defined only scalar myBeta() in phaseModel.H, the following error occurs:

    In file included from phaseModel/phaseModel.C:26:0:
    phaseModel/phaseModel.H:158:29: error: invalid declarator before 'd'
             tmp<volScalarField> d() const;
                                 ^
    phaseModel/phaseModel.H:162:26: error: non-member function 'const Foam::PhaseCompressibleTurbulenceModel<Foam::phaseModel>& Foam::turbulence()' cannot have cv-qualifier
                 turbulence() const;



  • Linux讲师 OpenFOAM讲师

    @kimy because the position of this part

     scalar alphaMax() const
            {
                return alphaMax_;
            }


    in phaseModel.H belong to the declaration of class phaseModel.
    so you do have to name alphaMax() as phaseModel::alphaMax()
    as for "Foam::", just for rigorous.

    "declaration in H and define in C" is not something like ban. just a rule free to follow. and it's a good habit.


    you had edit your last post and delete the important part. I've seen it. you lost a ";". and error also said "invalid declarator before 'd'"



  • @bestucan Many thanks. The same error occurs, same as original when I run my case.
    Could you please upload your phaseModel.C and H files here?


  • Linux讲师 OpenFOAM讲师

    pasheModel_and_systemsolve.zip

    systemsolve is where I call myBeta()



  • @bestucan I am a little bit crazy because my files are totally same as yours.......Still error after run. Note that I did not change the default library into user's library (All of them I leave it as defualt "LIB = $(FOAM_LIBBIN)/liblibcompressibleTwoPhaseSystem"
    ).



  • @bestucan

    Selecting default blending method: none
    Selecting dragModel for (solids in water): SchillerNaumann
    Selecting swarmCorrection for (solids in water): none
    #0  Foam::error::printStack(Foam::Ostream&) at ??:?
    #1  Foam::sigSegv::sigHandler(int) at ??:?
    #2  ? in /lib64/libc.so.6
    #3  ? at ??:?
    #4  __libc_start_main in /lib64/libc.so.6
    #5  ? at ??:?
    Segmentation fault (core dumped)



  • Linux讲师 OpenFOAM讲师

    @kimy do it slowly.

    1 find a normal case which works well. ensure basement is good
    2 add myBeta() only, and not use it. ensure compile works
    3 use cout << myBeta() << "somg flag". ensure function myBeta() works.
    4 use myBeta_ as a constant value in calculation. ensure framework is well.
    5 use myBeta_ as variable

    divide int more step if needed

    then use it as your wish. special case, special solver. If something wrong. there's nothing to do with myBeta(). maybe case? maybe solver? maybe variable overflow?

    you combine all steps into one step. it's hardly to debug.
    have you print myBeta_ value? just same as the value in case file?

    the error message seems not a special error. something about cout (Ostream&)



  • @bestucan Thanks. Your suggestions are very helpful. However, the solver met the same error mentioned before. I uploaded my solver and case files. Hope you can see them if you wish (I cannot upload). I modified the solver based on twophaseeulerfoam.




  • Linux讲师 OpenFOAM讲师

    I've tried. seems like your OpenFOAM version is different with mine. my version is 8



  • @bestucan Thanks a lot. What you mean is that you did not meet any problem in your OpenFOAM version? Could you please upload the whole modified solver files here (twophaseeulerfoam)? The files I uploaed above was copied from blueCFD (maybe openfoam 5). Additionally, I am also using HPC where openfoam-v1906 is loaded.



  • This is the solver file of openfoam_v1906

    slurrypipebendsolver.zip



  • I have already reached my goal in another way. Thanks for all helps.


  • Linux讲师 OpenFOAM讲师

    coagulation. complex for me to compile your solver. downloading and compiling openfoam 5 and openfoam v1906 cost lot of time. and several source file end with ".T.C" hadn't been upload.

    emmm..... not a good way to debug.:mihu: we have different OS and different environment.

    anyway, you've solved the problem.:high:



  • @bestucan Thanks for tracking this issue :xiexie:


  • Linux讲师 OpenFOAM讲师



  • @bestucan Thanks for your attention.


Log in to reply


CFD中文网 2016 - 2020 | 京ICP备15017992号-2
