    checkMesh failed,求助

    Meshy
    2
    6
    1955
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • Y
      yuhx last edited by


      Y 1 Reply Last reply Reply Quote
      • Y
        yuhx @yuhx last edited by

        @yuhx 0_1537491037506_e9005e21-521e-4d36-9e81-f731e4eca2f3-image.png

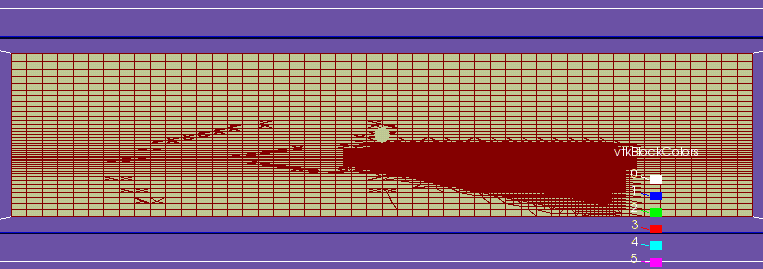

        能明显看出前端有一些网格出错了,但不知如何修改

        1 Reply Last reply Reply Quote
        • 李东岳
          李东岳 管理员 last edited by

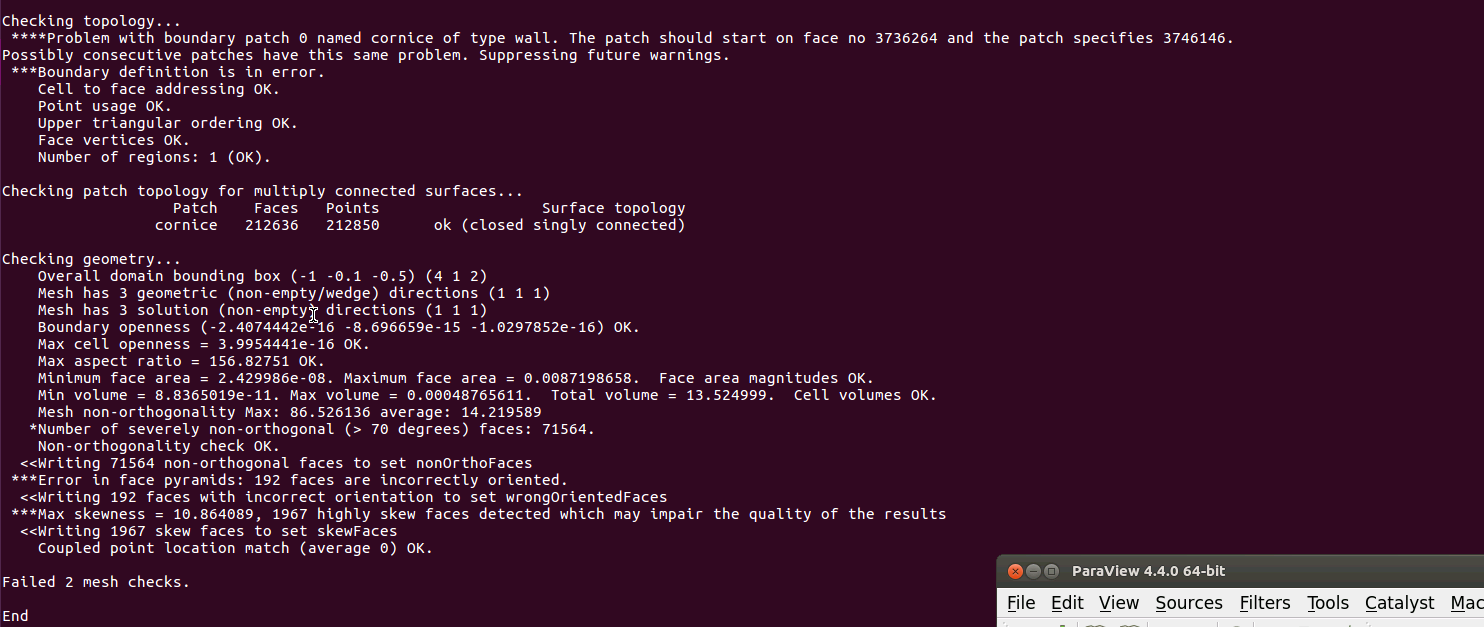

          snappyHexMesh做的么?网格数量多少?网格质量配置文件采用的默认的?加特征边没有,STL光滑性如何

          线上CFD课程 7月1日报名截止 http://dyfluid.com/class.html
          CFD高性能服务器 http://dyfluid.com/servers.html

          Y 1 Reply Last reply Reply Quote
          • Y
            yuhx @李东岳 last edited by 李东岳

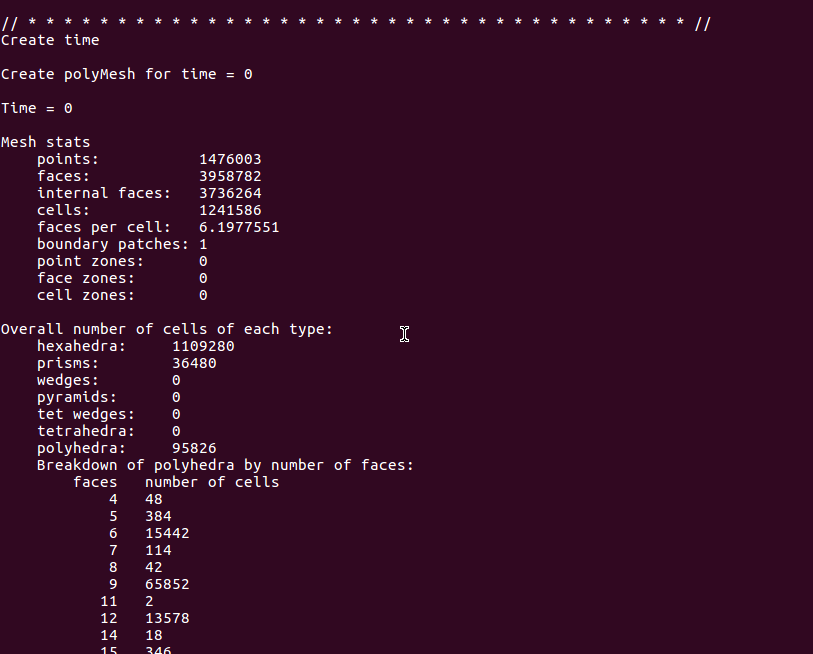

            @东岳 老师,是snappyHexMesh做的,网格数量是1109280,您说的网格质量配置文件是默认的,用了surfaceFeatureExtract命令,stl是一个表面光滑的立体


            1 Reply Last reply Reply Quote
            • 李东岳
              李东岳 管理员 last edited by

              网格太多了不好调试,处理到10万以下看看质量如何?

              线上CFD课程 7月1日报名截止 http://dyfluid.com/class.html
              CFD高性能服务器 http://dyfluid.com/servers.html

              Y 1 Reply Last reply Reply Quote
              • Y
                yuhx @李东岳 last edited by

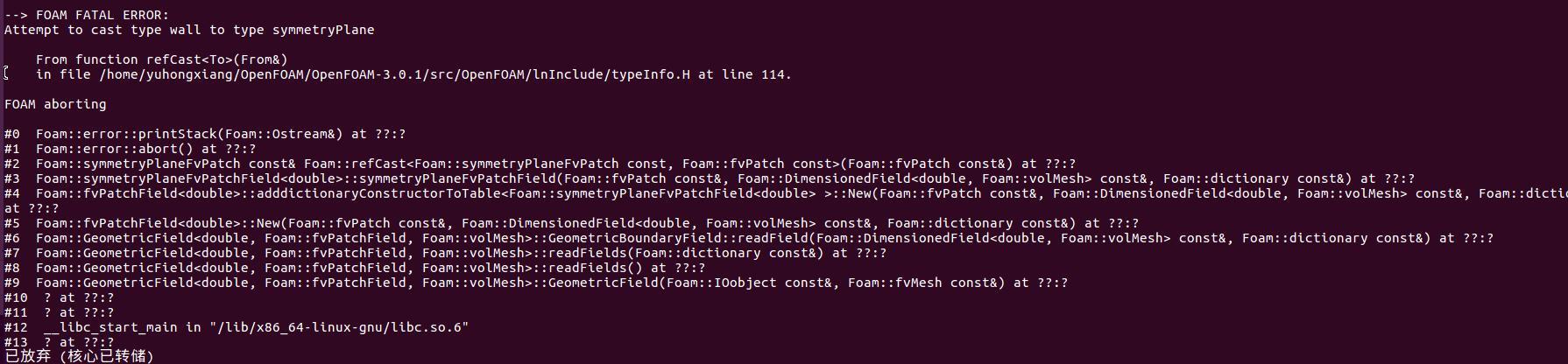

                @东岳 老师,我重新画网格后,decomposePar经常会报错,但是不影响后面计算,没有查到原因0_1537492983872_0403f9aa-ee80-4134-a228-ac6289ba58de-image.png

                1 Reply Last reply Reply Quote
