    后处理不正常,怀疑网格拉伸不正确?

    OpenFOAM
    2
    7
    410
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • Y
      yxl1453 last edited by 李东岳

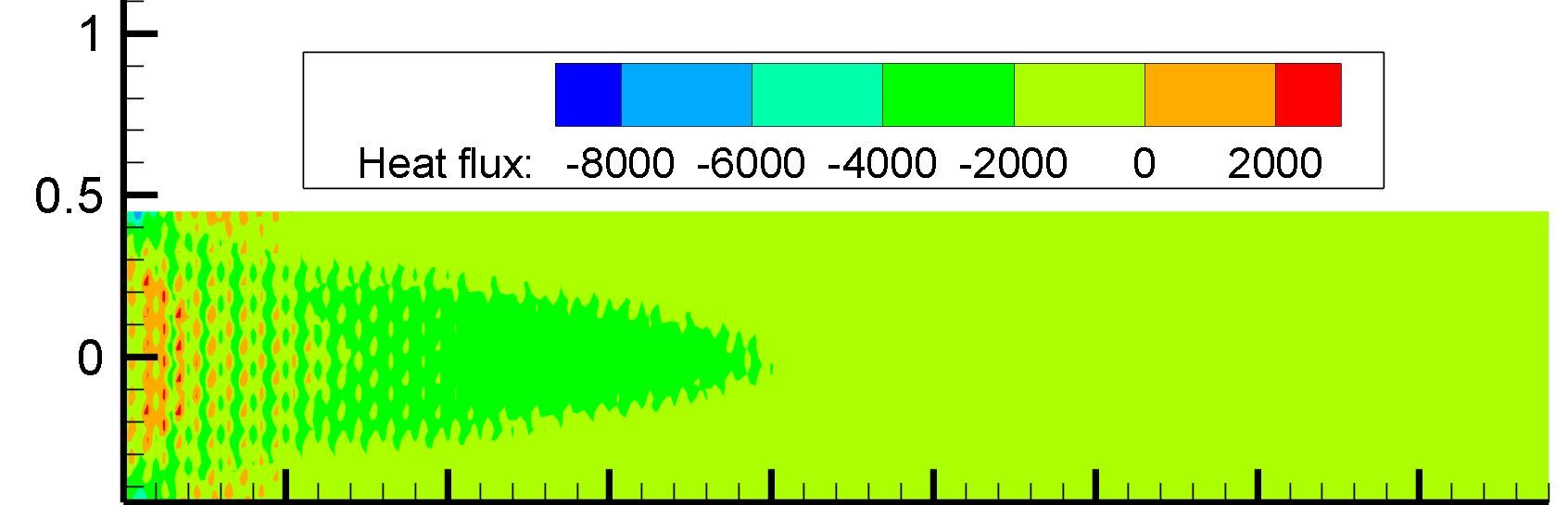

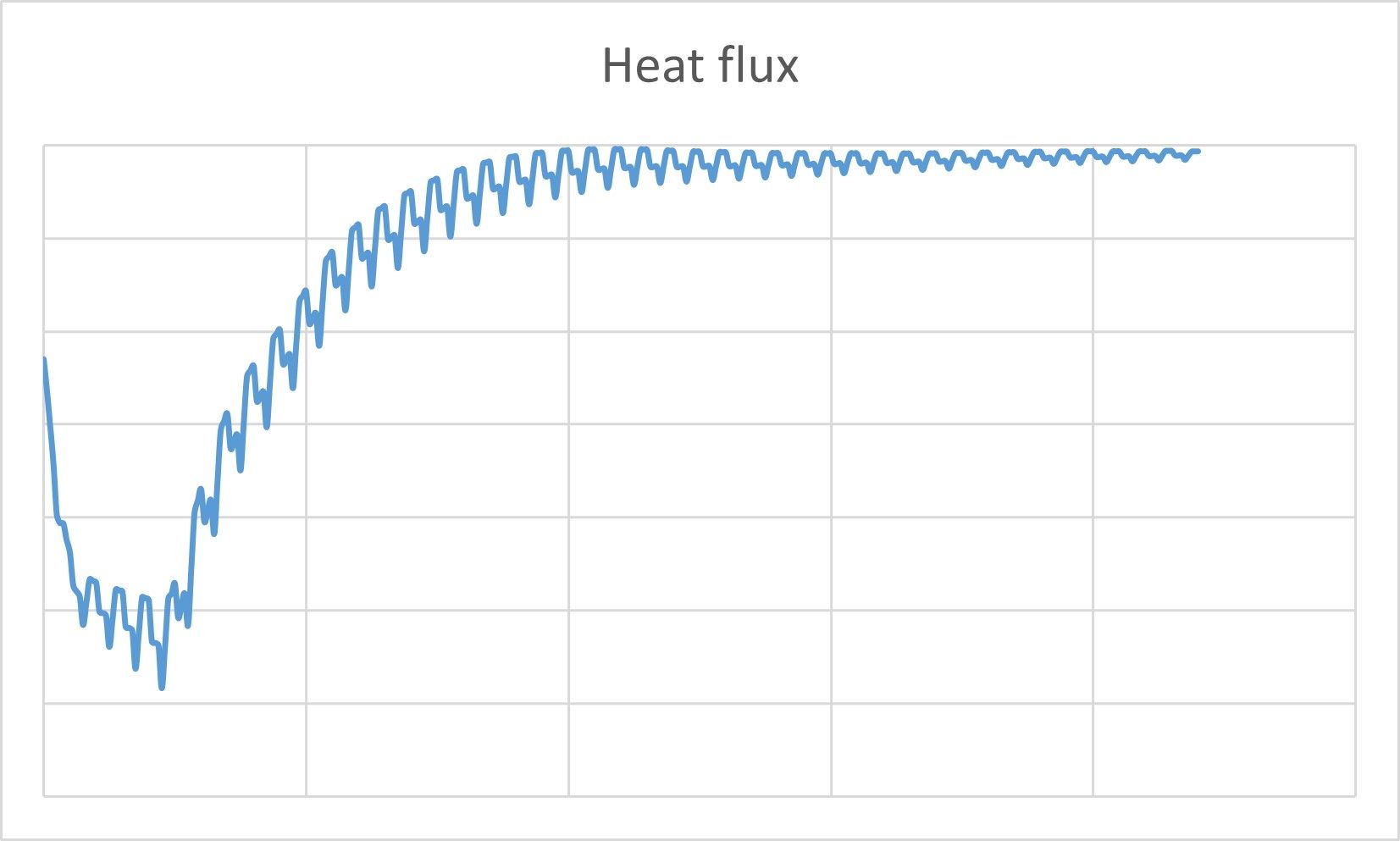

      请教一下最近做的某个项目,在计算域内部有一个extrudetomesh生成的八层网格固体,后处理结果显示温度云图正常,但是表面的热流量出现很多点状噪音,二维云图显示结果有局部震荡,请问有没有哪位老师遇到过类似的情况,个人怀疑是不是extrudetomesh设置问题没有正确拉伸出平板
      heatflux.JPG 2d.jpg
      附上extrudetomesh的设置

      region          plateRegion;
      oneD            true;
      sampleMode      nearestPatchFace;
      extrudeModel    linearNormal;
      oneDPolyPatchType empty; //wedge
      nLayers         8;
      expansionRatio  1;
      adaptMesh       true;
      linearNormalCoeffs
      {
          thickness       0.01;
      }


      先谢过各位!

      李东岳 1 Reply Last reply Reply Quote
      • 李东岳
        李东岳 管理员 @yxl1453 last edited by

        直接paraview看一下extrude的网格不就好了咩?

        CFD课程 改成线上了 http://dyfluid.com/class.html
        CFD高性能服务器 http://dyfluid.com/servers.html

        Y 1 Reply Last reply Reply Quote
        • Y
          yxl1453 @李东岳 last edited by

          @李东岳
          谢谢李老师,paraview看patch的二维面网格是正确的,没找到怎么看三维zoneset的网格。用tecplot看了一下感觉是三维体网格拉伸不正确(下图中特别小的那8层网格就是拉伸的固体网格)
          参考extrudeModel用的linearNormal,向正法向方向拉伸,是不是extrude找不到法向所以向任意方向拉伸了?

          Y 1 Reply Last reply Reply Quote
          • Y
            yxl1453 @yxl1453 last edited by

            @yxl1453 在 后处理不正常,怀疑网格拉伸不正确? 中说:

            @李东岳
            谢谢李老师,paraview看patch的二维面网格是正确的,没找到怎么看三维zoneset的网格。用tecplot看了一下感觉是三维体网格拉伸不正确(下图中特别小的那8层网格就是拉伸的固体网格)
            参考extrudeModel用的linearNormal,向正法向方向拉伸,是不是extrude找不到法向所以向任意方向拉伸了?

            @李东岳 请教一下李老师有没有修正网格拉伸方向的建议

            李东岳 1 Reply Last reply Reply Quote
            • 李东岳
              李东岳 管理员 @yxl1453 last edited by

              @yxl1453 你这个网格我没太看懂 :zoule:

              CFD课程 改成线上了 http://dyfluid.com/class.html
              CFD高性能服务器 http://dyfluid.com/servers.html

              Y 1 Reply Last reply Reply Quote
              • Y
                yxl1453 @李东岳 last edited by

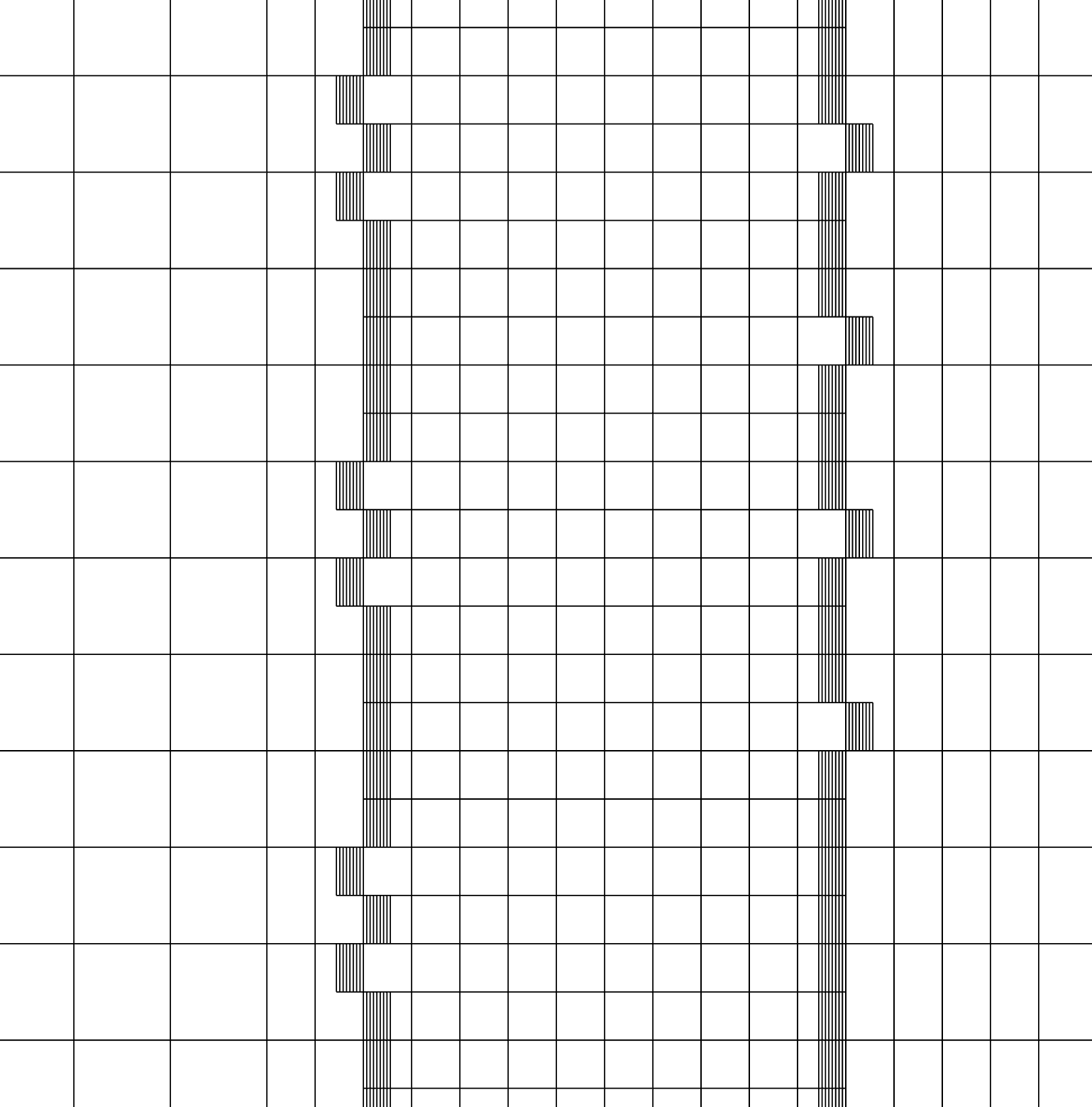

                @李东岳 谢谢李老师的回复!之前没解释清楚,固体网格是很小的那八层(红线周围)。网格结构是在流体网格(黑线粗网格)选定两个面patch(红线),然后沿着linearnormal方向拉伸八层固体网格(红线周围八层细网格)。现在看后处理,猜测是拉伸方向不固定,所以拉伸的固体网格错开了,不是在流场中生成平板。

                1 Reply Last reply Reply Quote
                • Y
                  yxl1453 last edited by

                  自己顶一下,有没有哪位老师给点意见,应该是网格拉伸方向错误了,但是不知道如何下手

                  1 Reply Last reply Reply Quote
