    修改湍流模型后,提醒:是k-e模型,但不是compressibleTurbulenceModel

    OpenFOAM
    2
    3
    491
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • A
      as_me last edited by

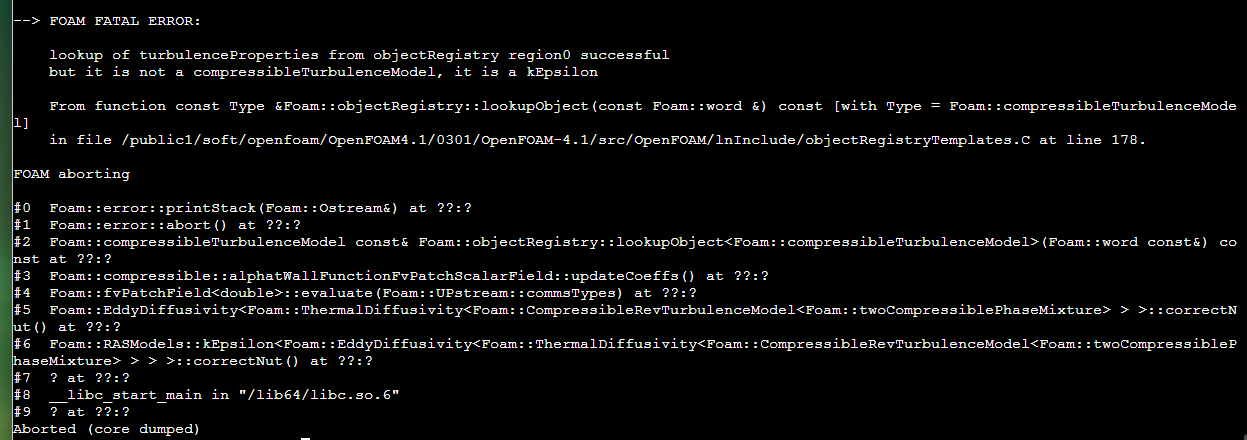

      如图,为了修改热物理库传递数据给湍流模型库的函数fluidThermo, 就复制了compressible下的湍流模型,修改了名称。但在调用K-Epsilon时,发生了错误。请大神看看,该怎么解决啊 :134: :135:

      1 Reply Last reply Reply Quote
      • 李东岳
        李东岳 管理员 last edited by 李东岳

        kEpsilon是一个可压缩多相模型。不知道你怎么操作的。只能判断出来alphaWallFunction出了问题。你换个零梯度看有没有问题,然后再debug你的湍流模型

        CFD课程 改成线上了 http://dyfluid.com/class.html
        CFD高性能服务器 http://dyfluid.com/servers.html

        1 Reply Last reply Reply Quote
        • A
          as_me last edited by

          谢谢李老师,确实是alphatWallFunction出了问题。重新修改了这个函数后,就可以了。再次感谢。:xinxin:

          1 Reply Last reply Reply Quote
