# shm生成边界层没有完全覆盖

• 我感觉的我模型其实不复杂，但是边界层生成的时候缺有点问题，请大家帮忙看一下如何改进比较好

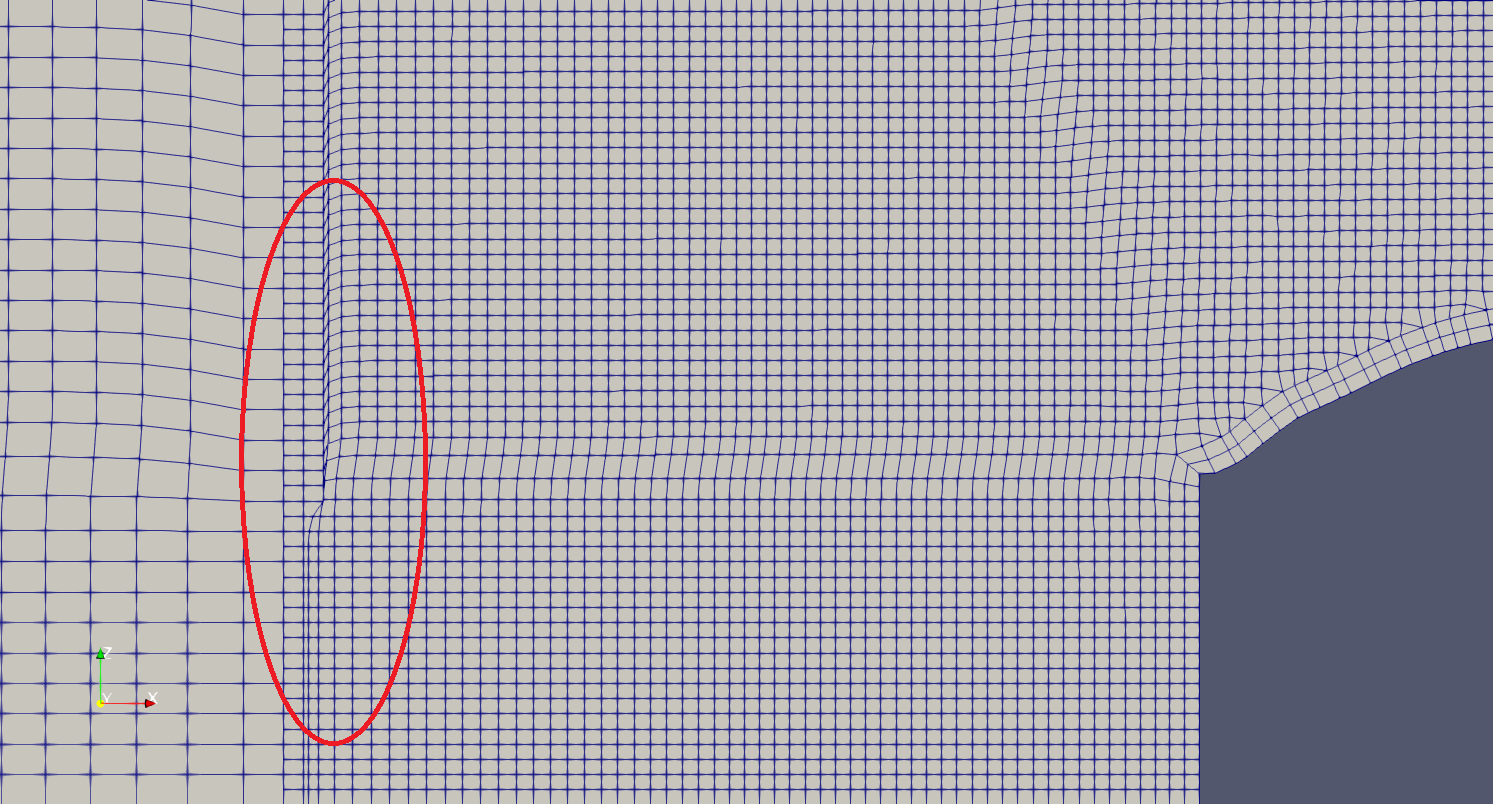

下图是shm第二步snap后的图：

感觉吻合的还可以的。

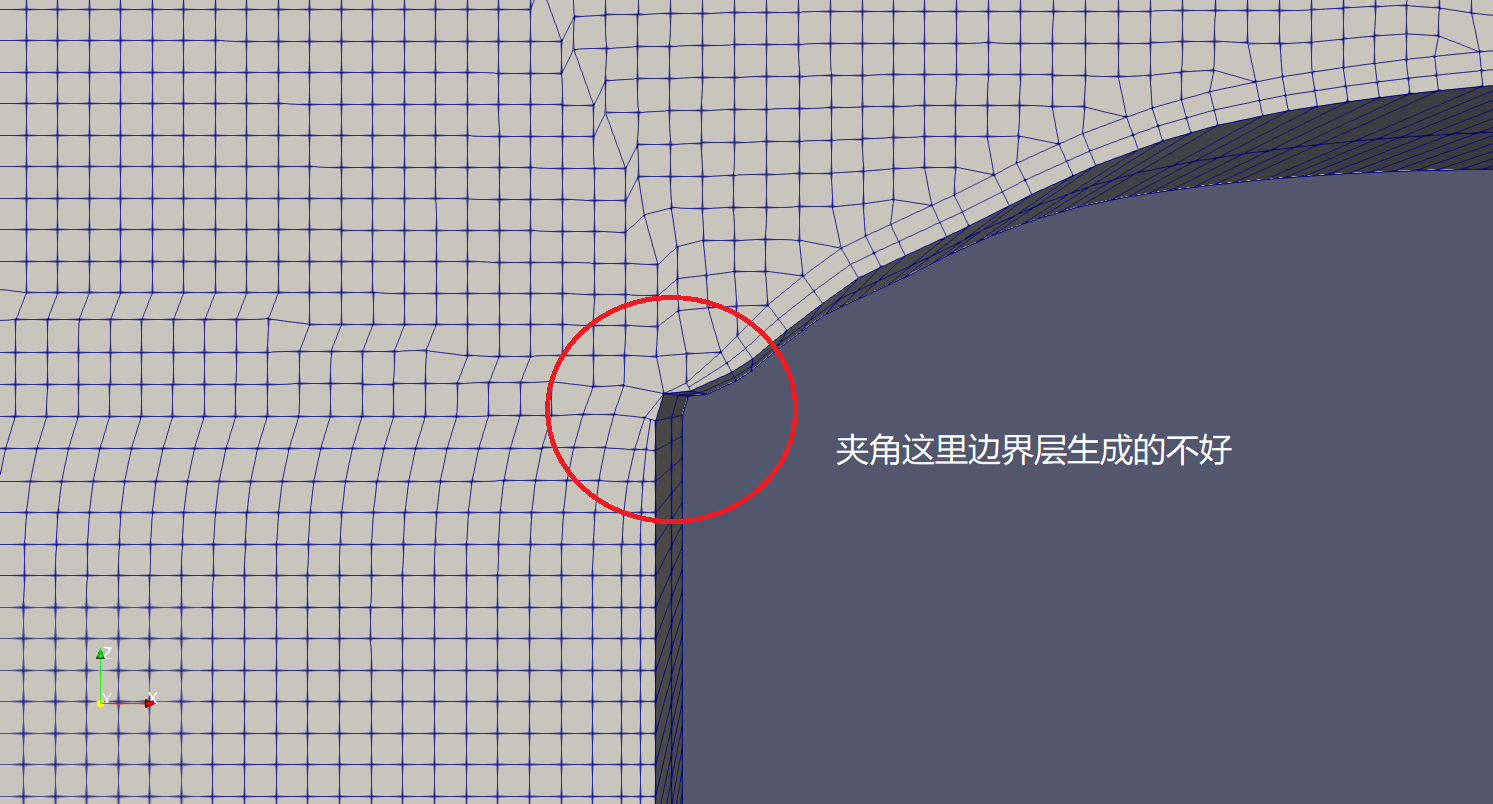

然后加边界层后发现夹角处的边界层出了问题：

我shm中对边界层的控制如下：

/*--------------------------------*- C++ -*----------------------------------*\
| =========                 |                                                 |
| \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox           |
|  \\    /   O peration     | Version:  v1806                                 |
|   \\  /    A nd           | Web:      www.OpenFOAM.com                      |
|    \\/     M anipulation  |                                                 |
\*---------------------------------------------------------------------------*/
FoamFile
{
version     2.0;
format      ascii;
class       dictionary;
object      snappyHexMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

// Which of the steps to run
castellatedMesh true;
snap            true;

// Geometry. Definition of all surfaces. All surfaces are of class
// searchableSurface.
// Surfaces are used
// - to specify refinement for any mesh cell intersecting it
// - to specify refinement for any mesh cell inside/outside/near
// - to 'snap' the mesh boundary to the surface
geometry
{
flatRoof.stl
{
type triSurfaceMesh;
name roof;
}

refinementBox
{
type searchableBox;
min (20 0 0);
max (80   1.0 8);
}
};

// Settings for the castellatedMesh generation.
castellatedMeshControls
{

// Refinement parameters
// ~~~~~~~~~~~~~~~~~~~~~

// If local number of cells is >= maxLocalCells on any processor
// switches from from refinement followed by balancing
// (current method) to (weighted) balancing before refinement.
maxLocalCells 100000;

// Overall cell limit (approximately). Refinement will stop immediately
// upon reaching this number so a refinement level might not complete.
// Note that this is the number of cells before removing the part which
// is not 'visible' from the keepPoint. The final number of cells might
// actually be a lot less.
maxGlobalCells 2000000;

// The surface refinement loop might spend lots of iterations refining just a
// few cells. This setting will cause refinement to stop if <= minimumRefine
// are selected for refinement. Note: it will at least do one iteration
// (unless the number of cells to refine is 0)
minRefinementCells 10;

// Allow a certain level of imbalance during refining
// (since balancing is quite expensive)
// Expressed as fraction of perfect balance (= overall number of cells /
// nProcs). 0=balance always.

// Number of buffer layers between different levels.
// 1 means normal 2:1 refinement restriction, larger means slower
// refinement.
nCellsBetweenLevels 3;

// Explicit feature edge refinement
// ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

// Specifies a level for any cell intersected by its edges.
// This is a featureEdgeMesh, read from constant/triSurface for now.
features
(
);

// Surface based refinement
// ~~~~~~~~~~~~~~~~~~~~~~~~

// Specifies two levels for every surface. The first is the minimum level,
// every cell intersecting a surface gets refined up to the minimum level.
// The second level is the maximum level. Cells that 'see' multiple
// intersections where the intersections make an
// angle > resolveFeatureAngle get refined up to the maximum level.

refinementSurfaces
{
roof
{
// Surface-wise min and max refinement level
level (1 1);

// Optional specification of patch type (default is wall). No
// constraint types (cyclic, symmetry) etc. are allowed.
patchInfo
{
type wall;
inGroups (roof);
}
}
}

// Resolve sharp angles
resolveFeatureAngle 30;

// Region-wise refinement
// ~~~~~~~~~~~~~~~~~~~~~~

// Specifies refinement level for cells in relation to a surface. One of
// three modes
// - distance. 'levels' specifies per distance to the surface the
//   wanted refinement level. The distances need to be specified in
//   descending order.
// - inside. 'levels' is only one entry and only the level is used. All
//   cells inside the surface get refined up to the level. The surface
//   needs to be closed for this to be possible.
// - outside. Same but cells outside.

refinementRegions
{
refinementBox
{
mode inside;
levels ((1E15 1));
}
}

// Mesh selection
// ~~~~~~~~~~~~~~

// After refinement patches get added for all refinementSurfaces and
// all cells intersecting the surfaces get put into these patches. The
// section reachable from the locationInMesh is kept.
// NOTE: This point should never be on a face, always inside a cell, even
// after refinement.
locationInMesh (0.5 0.5 0.5);

// Whether any faceZones (as specified in the refinementSurfaces)
// are only on the boundary of corresponding cellZones or also allow
// free-standing zone faces. Not used if there are no faceZones.
allowFreeStandingZoneFaces true;
}

// Settings for the snapping.
snapControls
{
//- Number of patch smoothing iterations before finding correspondence
//  to surface
nSmoothPatch 3;

//- Relative distance for points to be attracted by surface feature point
//  or edge. True distance is this factor times local
//  maximum edge length.
tolerance 2.0;

//- Number of mesh displacement relaxation iterations.
nSolveIter 30;

//- Maximum number of snapping relaxation iterations. Should stop
//  before upon reaching a correct mesh.
nRelaxIter 5;

// Feature snapping

//- Number of feature edge snapping iterations.
//  Leave out altogether to disable.
nFeatureSnapIter 10;

//- Detect (geometric only) features by sampling the surface
//  (default=false).
implicitFeatureSnap false;

//- Use castellatedMeshControls::features (default = true)
explicitFeatureSnap true;

//- Detect points on multiple surfaces (only for explicitFeatureSnap)
multiRegionFeatureSnap false;
}

// Settings for the layer addition.
{
// Are the thickness parameters below relative to the undistorted
// size of the refined cell outside layer (true) or absolute sizes (false).
relativeSizes true;

// Per final patch (so not geometry!) the layer information
layers
{
"roof"
{
nSurfaceLayers 2;
}
}

// Expansion factor for layer mesh
expansionRatio 1.2;

// Wanted thickness of final added cell layer. If multiple layers
// is the thickness of the layer furthest away from the wall.
// Relative to undistorted size of cell outside layer.
// See relativeSizes parameter.
//finalLayerThickness 1.0;
firstLayerThickness 0.5;
// Minimum thickness of cell layer. If for any reason layer
// cannot be above minThickness do not add layer.
// Relative to undistorted size of cell outside layer.
minThickness 0.3;

// If points get not extruded do nGrow layers of connected faces that are
// also not grown. This helps convergence of the layer addition process
// close to features.
// Note: changed(corrected) w.r.t 1.7.x! (didn't do anything in 1.7.x)
nGrow 0;

// When not to extrude surface. 0 is flat surface, 90 is when two faces
// are perpendicular
featureAngle 60;

// At non-patched sides allow mesh to slip if extrusion direction makes
// angle larger than slipFeatureAngle.
slipFeatureAngle 30;

// Maximum number of snapping relaxation iterations. Should stop
// before upon reaching a correct mesh.
nRelaxIter 3;

// Number of smoothing iterations of surface normals
nSmoothSurfaceNormals 1;

// Number of smoothing iterations of interior mesh movement direction
nSmoothNormals 3;

// Smooth layer thickness over surface patches
nSmoothThickness 10;

// Stop layer growth on highly warped cells
maxFaceThicknessRatio 0.5;

// Reduce layer growth where ratio thickness to medial
// distance is large
maxThicknessToMedialRatio 0.3;

// Angle used to pick up medial axis points
// Note: changed(corrected) w.r.t 1.7.x! 90 degrees corresponds to 130
// in 1.7.x.
minMedianAxisAngle 90;

// Create buffer region for new layer terminations
nBufferCellsNoExtrude 0;

// Overall max number of layer addition iterations. The mesher will exit
// if it reaches this number of iterations; possibly with an illegal
// mesh.
nLayerIter 50;
}

// Generic mesh quality settings. At any undoable phase these determine
// where to undo.
meshQualityControls
{
#include "meshQualityDict"

//- Number of error distribution iterations
nSmoothScale 4;
//- Amount to scale back displacement at error points
errorReduction 0.75;
}

// Write flags
writeFlags
(
scalarLevels
layerSets
layerFields     // write volScalarField for layer coverage
);

// Merge tolerance. Is fraction of overall bounding box of initial mesh.
// Note: the write tolerance needs to be higher than this.
mergeTolerance 1e-6;

// ************************************************************************* //



大家有什么建议么？提高一下边界层的质量
