    reactingtwophaseeulerfoam?

    OpenFOAM
    2
    23
    1877
    正在加载更多帖子
    • 从旧到新
    • 从新到旧
    • 最多赞同
    回复
    • 在新帖中回复
    登录后回复
    此主题已被删除。只有拥有主题管理权限的用户可以查看。
    • K
      kimy 最后由 李东岳 编辑

      http://dyfluid.com/reactingTwoPhaseEulerFoam.html

      In the website above, equation(24) is the sum of two continuity equations. Thus, I think the source term should be added here? Please give me some suggestions.

      pEqnComp1 =
                  (
                      contErr1
                    - fvc::Sp(fvc::ddt(alpha1) + fvc::div(alphaPhi1), rho1)
                  )/rho1
                + (alpha1*psi1/rho1)*correction(fvm::ddt(p_rgh))

                + fvc::laplacian(phase2.turbulence().nut()/mysigma,alpha1);


      The last line is added by myself, also for pEqnComp1. I don't know why it can be run with minus that bold term while I changed the sign to be plus the simulation crashed.

      1 条回复 最后回复 回复 引用
      • 李东岳
        李东岳 管理员 最后由 编辑

        Seems you are trying to add turbulent dispersion term in the alpha equation. It is a laplacian term. A positive laplacian term usually introduce problem since it can be seen as a negative negative laplacian term, which behaves as anti-diffusion. You can follow your step to construct pressure equation including the turbulent dispersion force as a source term. Another method is to employ to operator splitting method that you can simply solve the turbulent dispersion as a last step. In this manner the pressure equation is retained.

        CFD高性能服务器 http://dyfluid.com/servers.html
        2023年,线下CFD课,预热一下 http://dyfluid.com/class.html

        K 2 条回复 最后回复 回复 引用
        • K
          kimy @李东岳 最后由 编辑

          @东岳 在 reactingtwophaseeulerfoam? 中说:

          t is a laplacian term. A positive laplacian term u

          Thanks a lot, dongyue. I check the term I implemented are both the positive and negative values. Why minus has no problem and plus occurs the problem. Sorry, what do you mean follow my step to introduce a dispersion force as source term? and Another operator is?How to split ? One thing needs to be clear, here I did not use Sp or SuSp, but do you think it will lead different results?

          1 条回复 最后回复 回复 引用
          • K
            kimy @李东岳 最后由 编辑

            @东岳 !Picture1.png

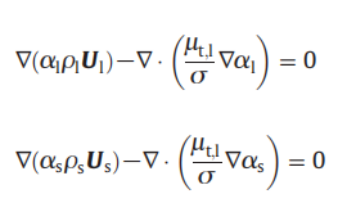

            This is the mass conservation equation I am using. The sign of laplacian term here is minus. However, as your page http://dyfluid.com/reactingTwoPhaseEulerFoam.html in equation(24), it should be plus I think if I understand well. I am confused that the sign of source term will induce large different result or no?

            1 条回复 最后回复 回复 引用
            • 李东岳
              李东岳 管理员 最后由 李东岳 编辑

              The source term in Eq. (24) does not come from the laplacian term. It comes from the convection term. Eq. (24) is not related to your posted equations. The laplacian terms in your posted image are turbulent dispersion terms. In OpenFOAM they are not implemented in this manner.

              CFD高性能服务器 http://dyfluid.com/servers.html
              2023年,线下CFD课,预热一下 http://dyfluid.com/class.html

              K 2 条回复 最后回复 回复 引用
              • K
                kimy @李东岳 最后由 编辑

                @东岳 If I understand well, equation (24) was changed by the sum of two mass conservation equation. However I must add that term in the mass conservation equation. So the position I implemented the laplacian term is right? The mass conservation equation shown in picture is our own equation.

                1 条回复 最后回复 回复 引用
                • 李东岳
                  李东岳 管理员 最后由 编辑

                  If you sum them up, $-\nabla\cdot(\nabla\alpha_l+\nabla\alpha_s)=0$ This term disappears.

                  CFD高性能服务器 http://dyfluid.com/servers.html
                  2023年,线下CFD课,预热一下 http://dyfluid.com/class.html

                  K 1 条回复 最后回复 回复 引用
                  • K
                    kimy @李东岳 最后由 编辑

                    @东岳 Thanks, if the sum of that two term is zero, so there cannot exist any problem during the simulation. why I use the sign "plus", it crashed while 'minus' run well? And if I changed the phase2.turbulence.nut() to be nu() a constant, "plus" has no problem?

                    1 条回复 最后回复 回复 引用
                    • 李东岳
                      李东岳 管理员 最后由 编辑

                      why I use the sign "plus", it crashed while 'minus' run well? And if I changed the phase2.turbulence.nut() to be nu() a constant, "plus" has no problem?

                      Do you obtain physically reasonable results? or just not blowing up.

                      CFD高性能服务器 http://dyfluid.com/servers.html
                      2023年,线下CFD课,预热一下 http://dyfluid.com/class.html

                      K 1 条回复 最后回复 回复 引用
                      • K
                        kimy @李东岳 最后由 编辑

                        @东岳 Frankly, I use the minus sign and I got the results however they doesn't agree well with the results from PHOENICS. The velocity profile seems shift in some degree. So I would like to try "plus" this term. I am not sure the place I added is right or not. When I change one to be plus and the other to be minus, it runs well and the results seems better.

                        1 条回复 最后回复 回复 引用
                        • 李东岳
                          李东岳 管理员 最后由 编辑

                          You cannot implement equations as you want. What you implement should obey physics. Otherwise even you get "reasonable" results, its just coincidence.

                          CFD高性能服务器 http://dyfluid.com/servers.html
                          2023年,线下CFD课,预热一下 http://dyfluid.com/class.html

                          K 2 条回复 最后回复 回复 引用
                          • K
                            kimy @李东岳 最后由 编辑

                            @东岳 I see. That is the reason why I post here. I wanna be sure that term should be implemented in which place. This is what I expect. Do you have any idea?

                            1 条回复 最后回复 回复 引用
                            • K
                              kimy @李东岳 最后由 编辑

                              @东岳 I am using IPSA model (lauder and spalding). In all of equation used, the alpha term has been introduced inside.
                              http://www.cham.co.uk/phoenics/d_polis/d_lecs/ipsa/ipsa.htm#11

                              1 条回复 最后回复 回复 引用
                              • K
                                kimy @李东岳 最后由 李东岳 编辑

                                @东岳 Sorry. I am still confused that how the equation(24) mentioned in your page could be solved in OpenFoam. In the source code:

                                        solve
                                        (
                                            pEqnComp1() + pEqnComp2() + pEqnIncomp,
                                            mesh.solver(p_rgh.select(pimple.finalInnerIter()))
                                        );


                                why pEqnComp1() + pEqnComp2() + pEqnIncomp ranther than - pEqnComp1() - pEqnComp2() + pEqnIncomp. Because in your equation(24), pEqnComp1() + pEqnComp2() in the right side while pEqnIncomp in the left side.

                                1 条回复 最后回复 回复 引用
                                • 李东岳
                                  李东岳 管理员 最后由 李东岳 编辑

                                  Thanks for your feedback. The R.H.S. of the following equation should be a - sign. It was corrected.
                                  \begin{equation}\label{comp_nablaU}
                                  \underset{\mathrm{pEqnIncomp}}{\underbrace{\nabla\cdot\left(\alpha_\rd\bfU_\rd+\alpha_\rc\bfU_\rc\right)}}=\underset{\mathrm{\color{red}{-}pEqnComp1\color{red}{-}pEqnComp2}}{\underbrace{-\frac{\alpha_\rd}{\rho_\rd}\frac{\rD\rho_\rd}{\rD t}-\frac{\alpha_\rc}{\rho_\rc}\frac{\rD\rho_\rc}{\rD t} }}.
                                  \end{equation}

                                  What is the first term? Its a second order tensor which is not consistent with the second term (scalar).

                                  替代文字

                                  CFD高性能服务器 http://dyfluid.com/servers.html
                                  2023年,线下CFD课,预热一下 http://dyfluid.com/class.html

                                  K 2 条回复 最后回复 回复 引用
                                  • K
                                    kimy @李东岳 最后由 编辑

                                    @东岳 So if I wanna add the term related to the gradient alpha in the continuity equation, in which place should I put the term?

                                    1 条回复 最后回复 回复 引用
                                    • K
                                      kimy @李东岳 最后由 编辑

                                      @东岳 Thanks, Dongyue. I am still confused that why I add the same term in the pEqnComp1 and pEqnComp2, or pEqnIncomp leads to the different results?

                                      1 条回复 最后回复 回复 引用
                                      • 李东岳
                                        李东岳 管理员 最后由 编辑

                                        So if I wanna add the term related to the gradient alpha in the continuity equation, in which place should I put the term?

                                        You should implement it in the alpha equation.

                                        CFD高性能服务器 http://dyfluid.com/servers.html
                                        2023年,线下CFD课,预热一下 http://dyfluid.com/class.html

                                        K 1 条回复 最后回复 回复 引用
                                        • K
                                          kimy @李东岳 最后由 编辑

                                          @东岳 Sorry, to my knowledge alpha equation dosn't exsist in the twophaseeulerfoam? How can I realize it?

                                          1 条回复 最后回复 回复 引用
                                          • 李东岳
                                            李东岳 管理员 最后由 编辑

                                            alpha field was solved by MULES algorithm. You can add something after MULES procedure as follows:

                                            solve(fvm::ddt(alpha) - fvm::laplacian(D, alpha) = fvc::ddt(alpha);


                                            CFD高性能服务器 http://dyfluid.com/servers.html
                                            2023年,线下CFD课,预热一下 http://dyfluid.com/class.html

                                            K 1 条回复 最后回复 回复 引用
                                            • K
                                              kimy @李东岳 最后由 编辑

                                              @东岳Thanks. however MULES is not implemented in twophaseeulerfoam. As mentioned before, the term must be added into the continuity equation rather than alpha equa, which is the Spalding's IPSA solver in PHOENICS.

                                              K 1 条回复 最后回复 回复 引用
                                              • K
                                                kimy @kimy 最后由 编辑

                                                @kimy Sorry, I mean where is the MULES in the twophaseeulerfoam, which I did not find but I found MULES in the terminal during calculation.

                                                1 条回复 最后回复 回复 引用
                                                • 李东岳
                                                  李东岳 管理员 最后由 编辑

                                                  alpha was solved in twoPhaseSystem.C

                                                  CFD高性能服务器 http://dyfluid.com/servers.html
                                                  2023年,线下CFD课,预热一下 http://dyfluid.com/class.html

                                                  1 条回复 最后回复 回复 引用
