    OpenFoam定义新边界条件问题---通量边界

    OpenFOAM
    3
    13
    2901
    正在加载更多帖子
    • 从旧到新
    • 从新到旧
    • 最多赞同
    回复
    • 在新帖中回复
    登录后回复
    此主题已被删除。只有拥有主题管理权限的用户可以查看。
    • G
      general 最后由 编辑

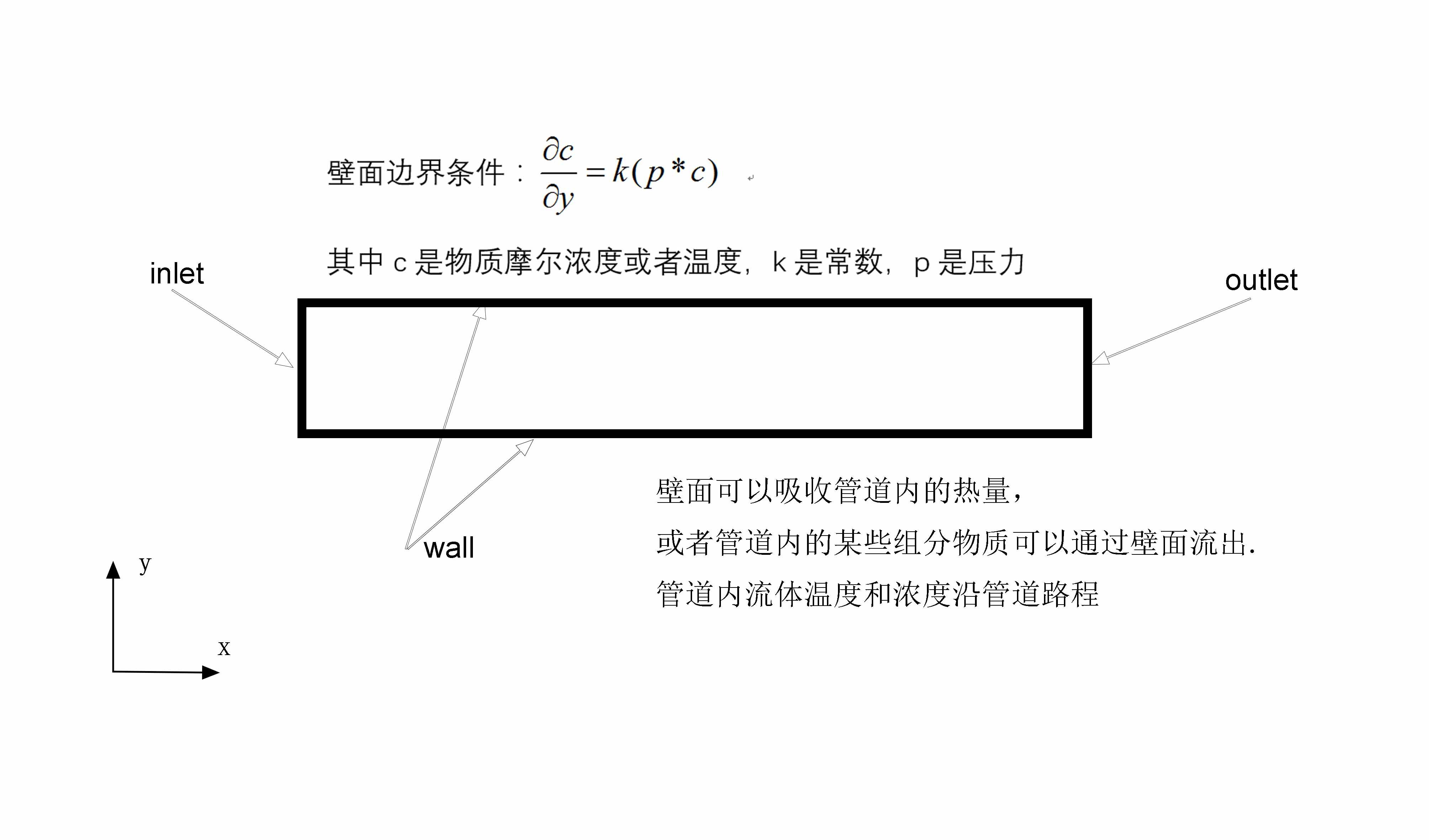

      最近需要计算一个壁面传热传质的模型,结果发现fluent中的壁面边界条件在组分输运上只有两个选项,一个是质量分数,另一个是零梯度。
      所以计划利用openfoam编写一个组分或者热量运输通量的边界条件,参考了网上的一个相关教程(https://wenku.baidu.com/view/67aeca451fd9ad51f01dc281e53a580216fc50ea.html)

      1 条回复 最后回复 回复 引用
      • G
        general 最后由 编辑


        1 条回复 最后回复 回复 引用
        • G
          general 最后由 编辑

          这边参考网上陈丽萍老师的教程,但是编译总是出错,是不是版本不支持了?我的是5.0版本

          1 条回复 最后回复 回复 引用
          • G
            general 最后由 编辑

            尝试编译过程发现提示.C的173行有问题

            wmake libso .
            g++ -std=c++11 -m64 -Dlinux64 -DWM_ARCH_OPTION=64 -DWM_DP -DWM_LABEL_SIZE=32 -Wall -Wextra -Wold-style-cast -Wnon-virtual-dtor -Wno-unused-parameter -Wno-invalid-offsetof -O3  -DNoRepository -ftemplate-depth-100 -I/home/a/OpenFOAM/OpenFOAM-5.x/src/finiteVolume/lnInclude  -IlnInclude -I. -I/home/a/OpenFOAM/OpenFOAM-5.x/src/OpenFOAM/lnInclude -I/home/a/OpenFOAM/OpenFOAM-5.x/src/OSspecific/POSIX/lnInclude   -fPIC -c flowFvPatchScalarField.C -o Make/linux64GccDPInt32Opt/flowFvPatchScalarField.o
            flowFvPatchScalarField.C: In member function ‘virtual void Foam::flowFvPatchScalarField::updateCoeffs()’:
            flowFvPatchScalarField.C:173:48: error: qualified-id in declaration before ‘(’ token
             void Foam::flowFvPatchScalarField::updateCoeffs()
                                                            ^
            /home/a/OpenFOAM/OpenFOAM-5.x/wmake/rules/General/transform:25: recipe for target 'Make/linux64GccDPInt32Opt/flowFvPatchScalarField.o' failed
            make: *** [Make/linux64GccDPInt32Opt/flowFvPatchScalarField.o] Error 1



            对应173行的代码为:

            void Foam::flowFvPatchScalarField::updateCoeffs()
            {
                const volScalarField& C =
                    db().lookupObject<volScalarField>(C_);

                gradient_ =5;

                operator==
                (
                    this->patchInternalField()
                    + gradient_/this->patch().deltaCoeffs
                );
            }

                fixedValueFvPatchScalarField::updateCoeffs();
            }

            1 条回复 最后回复 回复 引用
            • 李东岳
              李东岳 管理员 最后由 编辑

              @general 在 OpenFoam定义新边界条件问题---通量边界 中说:

              这边参考网上陈丽萍老师的教程,但是编译总是出错,是不是版本不支持了?我的是5.0版本

              没细看,不过单独看这一句,是版本不支持

              线上CFD课程开始报名:http://www.dyfluid.com/class.html

              CFD高性能服务器 http://dyfluid.com/servers.html

              1 条回复 最后回复 回复 引用
              • G
                general 最后由 编辑

                最近尝试修改,整理完成后边界可以编译了,但是放到计算文件中还是报错,提示错误如下,有人知道这是什么原因吗?

                Unknown patchField type newgrad for patch type wall

                Valid patchField types are :
                (。。。。。(省略)
                )
                file: /home/a/temp/cavity/0/C.boundaryField.wall2flow from line 41 to line 41.

                    From function static Foam::tmp<Foam::fvPatchField<Type> > Foam::fvPatchField<Type>::New(const Foam::fvPatch&, const Foam::DimensionedField<Type, Foam::volMesh>&, const Foam::dictionary&) [with Type = double]
                    in file /home/a/OpenFOAM/OpenFOAM-5.x/src/finiteVolume/lnInclude/fvPatchFieldNew.C at line 134.

                FOAM exiting



                H文件

                #ifndef newgradFvPatchScalarField_H
                #define newgradFvPatchScalarField_H

                #include "fixedValueFvPatchFields.H"

                // * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

                namespace Foam
                {

                /*---------------------------------------------------------------------------*\
                             Class newgradFvPatchScalarField Declaration
                \*---------------------------------------------------------------------------*/

                class newgradFvPatchScalarField
                :
                    public fixedValueFvPatchScalarField
                {
                    // Private data

                        //- Total pressure
                        scalarField gradient_;

                public:

                    //- Runtime type information
                    TypeName("newgrad");


                    // Constructors

                        //- Construct from patch and internal field
                        newgradFvPatchScalarField
                        (
                            const fvPatch&,
                            const DimensionedField<scalar, volMesh>&
                        );

                        //- Construct from patch, internal field and dictionary
                        newgradFvPatchScalarField
                        (
                            const fvPatch&,
                            const DimensionedField<scalar, volMesh>&,
                            const dictionary&
                        );

                        //- Construct by mapping given newgradFvPatchScalarField
                        //  onto a new patch
                        newgradFvPatchScalarField
                        (
                            const newgradFvPatchScalarField&,
                            const fvPatch&,
                            const DimensionedField<scalar, volMesh>&,
                            const fvPatchFieldMapper&
                        );


                        //- Construct as copy
                         newgradFvPatchScalarField
                        (
                            const newgradFvPatchScalarField&
                        );

                        //- Construct and return a clone
                        virtual tmp<fvPatchScalarField> clone() const
                        {
                            return tmp<fvPatchScalarField>
                            (
                                new newgradFvPatchScalarField(*this)
                            );
                        }


                        //- Construct as copy setting internal field reference
                        newgradFvPatchScalarField
                        (
                            const newgradFvPatchScalarField&,
                            const DimensionedField<scalar, volMesh>&
                        );

                        //- Construct and return a clone setting internal field reference
                        virtual tmp<fvPatchScalarField> clone
                        (
                            const DimensionedField<scalar, volMesh>& iF
                        ) const
                        {
                            return tmp<fvPatchScalarField>
                            (
                                new newgradFvPatchScalarField(*this, iF)
                            );
                        }



                    // Member functions

                        // Access

                            //- Return the total pressure
                            const scalarField& gradient() const
                            {
                                return gradient_;
                            }

                            //- Return reference to the total pressure to allow adjustment
                            scalarField& gradient()
                            {
                                return gradient_;
                            }


                        // Mapping functions

                            //- Map (and resize as needed) from self given a mapping object
                            virtual void autoMap
                            (
                                const fvPatchFieldMapper&
                            );

                            //- Reverse map the given fvPatchField onto this fvPatchField
                            virtual void rmap
                            (
                                const fvPatchScalarField&,
                                const labelList&
                            );



                        // Evaluation functions

                            //- Update the coefficients associated with the patch field
                            virtual void updateCoeffs();


                        //- Write
                        //virtual void write(Ostream&) const;
                };


                // * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

                } // End namespace Foam

                // * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

                #endif

                // ************************************************************************* //



                C文件

                #include "newgradFvPatchScalarField.H"
                #include "addToRunTimeSelectionTable.H"
                #include "fvPatchFieldMapper.H"
                #include "volFields.H"
                #include "surfaceFields.H"
                void Foam::newgradFvPatchScalarField::updateCoeffs()
                {
                    if (updated())
                    {
                        return;
                    }

                    const volScalarField& C =
                        db().lookupObject<volScalarField>("C");
                    gradient_=0.5*C;

                    operator==
                    (
                        this->patchInternalField()+gradient_/this->patch().deltaCoeffs()
                    );

                    fixedValueFvPatchScalarField::updateCoeffs();
                }

                // * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

                namespace Foam
                {
                    makePatchTypeField
                    (
                        fvPatchScalarField,
                        newgradFvPatchScalarField
                    );
                }


                1 条回复 最后回复 回复 引用
                • G
                  general 最后由 编辑

                  边界条件编译了, .so文件也添加到字典中了,还是提示Unknown patchField type newgrad for patch type wall,这个好让人困惑。。。

                  1 条回复 最后回复 回复 引用
                  • G
                    general 最后由 编辑

                    检查发现是在字典中少将libs 写成了lib,修改之后还是出错,不过边界条件可以识别了。

                    // * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
                    Create time

                    Create mesh for time = 0


                    PISO: Operating solver in PISO mode

                    Reading transportProperties

                    Reading field p

                    Reading field U

                    Reading field C

                    Reading/calculating face flux field phi


                    Starting time loop

                    Time = 5e-05

                    Courant Number mean: 7.5e-05 max: 0.194817
                    smoothSolver:  Solving for Ux, Initial residual = 1, Final residual = 2.38974e-06, No Iterations 8
                    smoothSolver:  Solving for Uy, Initial residual = 0, Final residual = 0, No Iterations 0
                    #0  Foam::error::printStack(Foam::Ostream&) at ??:?
                    #1  Foam::sigFpe::sigHandler(int) at ??:?
                    #2  ? in "/lib/x86_64-linux-gnu/libc.so.6"
                    #3  Foam::divide(Foam::Field<double>&, Foam::UList<double> const&, Foam::UList<double> const&) at ??:?
                    #4  Foam::operator/(Foam::UList<double> const&, Foam::UList<double> const&) at ??:?
                    #5  Foam::newFvPatchScalarField::updateCoeffs() at ??:?
                    #6  Foam::fvMatrix<double>::fvMatrix(Foam::GeometricField<double, Foam::fvPatchField, Foam::volMesh> const&, Foam::dimensionSet const&) at ??:?
                    #7  Foam::fv::gaussLaplacianScheme<double, Foam::SymmTensor<double> >::fvmLaplacianUncorrected(Foam::GeometricField<double, Foam::fvsPatchField, Foam::surfaceMesh> const&, Foam::GeometricField<double, Foam::fvsPatchField, Foam::surfaceMesh> const&, Foam::GeometricField<double, Foam::fvPatchField, Foam::volMesh> const&) at ??:?
                    #8  Foam::fv::gaussLaplacianScheme<double, double>::fvmLaplacian(Foam::GeometricField<double, Foam::fvsPatchField, Foam::surfaceMesh> const&, Foam::GeometricField<double, Foam::fvPatchField, Foam::volMesh> const&) at ??:?
                    #9  ? at ??:?
                    #10  ? at ??:?
                    #11  __libc_start_main in "/lib/x86_64-linux-gnu/libc.so.6"
                    #12  ? at ??:?
                    浮点数例外 (核心已转储)


                    C文件

                    /*---------------------------------------------------------------------------*\
                      =========                 |
                      \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
                       \\    /   O peration     |
                        \\  /    A nd           | Copyright (C) 2011-2017 OpenFOAM Foundation
                         \\/     M anipulation  |
                    -------------------------------------------------------------------------------
                    License
                        This file is part of OpenFOAM.

                        OpenFOAM is free software: you can redistribute it and/or modify it
                        under the terms of the GNU General Public License as published by
                        the Free Software Foundation, either version 3 of the License, or
                        (at your option) any later version.

                        OpenFOAM is distributed in the hope that it will be useful, but WITHOUT
                        ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or
                        FITNESS FOR A PARTICULAR PURPOSE.  See the GNU General Public License
                        for more details.

                        You should have received a copy of the GNU General Public License
                        along with OpenFOAM.  If not, see <http://www.gnu.org/licenses/>.

                    \*---------------------------------------------------------------------------*/

                    #include "newFvPatchScalarField.H"
                    #include "addToRunTimeSelectionTable.H"
                    #include "fvPatchFieldMapper.H"
                    #include "volFields.H"
                    #include "surfaceFields.H"

                    // * * * * * * * * * * * * * * * * Constructors  * * * * * * * * * * * * * * //

                    Foam::newFvPatchScalarField::newFvPatchScalarField
                    (
                        const fvPatch& p,
                        const DimensionedField<scalar, volMesh>& iF
                    )
                    :
                        fixedValueFvPatchScalarField(p, iF)

                    {}


                    Foam::newFvPatchScalarField::newFvPatchScalarField
                    (
                        const newFvPatchScalarField& ptf,
                        const fvPatch& p,
                        const DimensionedField<scalar, volMesh>& iF,
                        const fvPatchFieldMapper& mapper
                    )
                    :
                        fixedValueFvPatchScalarField(ptf, p, iF, mapper)

                    {}


                    Foam::newFvPatchScalarField::newFvPatchScalarField
                    (
                        const fvPatch& p,
                        const DimensionedField<scalar, volMesh>& iF,
                        const dictionary& dict
                    )
                    :
                        fixedValueFvPatchScalarField(p, iF, dict, false)

                    {

                    }


                    Foam::newFvPatchScalarField::newFvPatchScalarField
                    (
                        const newFvPatchScalarField& tppsf
                    )
                    :
                        fixedValueFvPatchScalarField(tppsf)

                    {}


                    Foam::newFvPatchScalarField::newFvPatchScalarField
                    (
                        const newFvPatchScalarField& tppsf,
                        const DimensionedField<scalar, volMesh>& iF
                    )
                    :
                        fixedValueFvPatchScalarField(tppsf, iF)

                    {}


                    // * * * * * * * * * * * * * * * Member Functions  * * * * * * * * * * * * * //

                    void Foam::newFvPatchScalarField::autoMap
                    (
                        const fvPatchFieldMapper& m
                    )
                    {
                        fixedValueFvPatchScalarField::autoMap(m);

                    }


                    void Foam::newFvPatchScalarField::rmap
                    (
                        const fvPatchScalarField& ptf,
                        const labelList& addr
                    )
                    {
                        fixedValueFvPatchScalarField::rmap(ptf, addr);

                    }


                    void Foam::newFvPatchScalarField::updateCoeffs()
                    {
                        if (updated())
                        {
                            return;
                        }

                        const volScalarField& C =
                            db().lookupObject<volScalarField>("C");
                        gradient_=0.5*C;

                        operator==
                        (
                            this->patchInternalField()+gradient_/this->patch().deltaCoeffs()
                        );

                        fixedValueFvPatchScalarField::updateCoeffs();
                    }


                    //void Foam::newFvPatchScalarField::write(Ostream& os) const
                    //{
                    //    fvPatchScalarField::write(os);
                    //}


                    // * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

                    namespace Foam
                    {
                        makePatchTypeField
                        (
                            fvPatchScalarField,
                            newFvPatchScalarField
                        );
                    }

                    // ************************************************************************* //


                    H文件

                    /*---------------------------------------------------------------------------*\
                      =========                 |
                      \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
                       \\    /   O peration     |
                        \\  /    A nd           | Copyright (C) 2011-2016 OpenFOAM Foundation
                         \\/     M anipulation  |
                    -------------------------------------------------------------------------------
                    License
                        This file is part of OpenFOAM.

                        OpenFOAM is free software: you can redistribute it and/or modify it
                        under the terms of the GNU General Public License as published by
                        the Free Software Foundation, either version 3 of the License, or
                        (at your option) any later version.

                        OpenFOAM is distributed in the hope that it will be useful, but WITHOUT
                        ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or
                        FITNESS FOR A PARTICULAR PURPOSE.  See the GNU General Public License
                        for more details.

                        You should have received a copy of the GNU General Public License
                        along with OpenFOAM.  If not, see <http://www.gnu.org/licenses/>.

                    Class
                        Foam::newFvPatchScalarField

                    Group
                        grpInletBoundaryConditions grpOutletBoundaryConditions

                    Description
                        This boundary condition provides a total temperature condition.

                    Usage
                        \table
                            Property     | Description             | Required    | Default value
                            U            | Velocity field name     | no          | U
                            phi          | Flux field name         | no          | phi
                            psi          | Compressibility field name | no       | thermo:psi
                            gamma        | ratio of specific heats (Cp/Cv) | yes |
                            T0           | reference temperature   | yes         |
                        \endtable

                        Example of the boundary condition specification:
                        \verbatim
                        <patchName>
                        {
                            type            new;
                            T0              uniform 300;
                        }
                        \endverbatim

                    SourceFiles
                        newFvPatchScalarField.C

                    See also
                        Foam::fixedValueFvPatchField

                    \*---------------------------------------------------------------------------*/

                    #ifndef newFvPatchScalarField_H
                    #define newFvPatchScalarField_H

                    #include "fixedValueFvPatchFields.H"

                    // * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

                    namespace Foam
                    {

                    /*---------------------------------------------------------------------------*\
                                 Class newFvPatchScalarField Declaration
                    \*---------------------------------------------------------------------------*/

                    class newFvPatchScalarField
                    :
                        public fixedValueFvPatchScalarField
                    {
                        // Private data

                        scalarField gradient_;


                    public:

                        //- Runtime type information
                        TypeName("new");


                        // Constructors

                            //- Construct from patch and internal field
                            newFvPatchScalarField
                            (
                                const fvPatch&,
                                const DimensionedField<scalar, volMesh>&
                            );

                            //- Construct from patch, internal field and dictionary
                            newFvPatchScalarField
                            (
                                const fvPatch&,
                                const DimensionedField<scalar, volMesh>&,
                                const dictionary&
                            );

                            //- Construct by mapping given newFvPatchScalarField
                            //  onto a new patch
                            newFvPatchScalarField
                            (
                                const newFvPatchScalarField&,
                                const fvPatch&,
                                const DimensionedField<scalar, volMesh>&,
                                const fvPatchFieldMapper&
                            );

                            //- Construct as copy
                            newFvPatchScalarField
                            (
                                const newFvPatchScalarField&
                            );

                            //- Construct and return a clone
                            virtual tmp<fvPatchScalarField> clone() const
                            {
                                return tmp<fvPatchScalarField>
                                (
                                    new newFvPatchScalarField(*this)
                                );
                            }

                            //- Construct as copy setting internal field reference
                            newFvPatchScalarField
                            (
                                const newFvPatchScalarField&,
                                const DimensionedField<scalar, volMesh>&
                            );

                            //- Construct and return a clone setting internal field reference
                            virtual tmp<fvPatchScalarField> clone
                            (
                                const DimensionedField<scalar, volMesh>& iF
                            ) const
                            {
                                return tmp<fvPatchScalarField>
                                (
                                    new newFvPatchScalarField(*this, iF)
                                );
                            }


                        // Member functions

                            // Access

                                //- Return the total pressure

                                //- Return the total pressure
                                const scalarField& gradient() const
                                {
                                    return gradient_;
                                }

                                //- Return reference to the total pressure to allow adjustment
                                scalarField& gradient()
                                {
                                    return gradient_;
                                }


                            // Mapping functions

                                //- Map (and resize as needed) from self given a mapping object
                                virtual void autoMap
                                (
                                    const fvPatchFieldMapper&
                                );

                                //- Reverse map the given fvPatchField onto this fvPatchField
                                virtual void rmap
                                (
                                    const fvPatchScalarField&,
                                    const labelList&
                                );


                            // Evaluation functions

                                //- Update the coefficients associated with the patch field
                                virtual void updateCoeffs();


                            //- Write
                            //virtual void write(Ostream&) const;
                    };


                    // * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

                    } // End namespace Foam

                    // * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

                    #endif

                    // ************************************************************************* //


                    1 条回复 最后回复 回复 引用
                    • G
                      general 最后由 编辑

                      有人知道下面这种错误的原因吗?

                      myicoFoam: symbol lookup error: /home/a/OpenFOAM/a-5.x/platforms/linux64GccDPInt32Opt/lib/libnewFvPatchScalarField.so: undefined symbol: _ZN4Foam21newFvPatchScalarFieldC1ERKNS_7fvPatchERKNS_16DimensionedFieldIdNS_7volMeshEEERKNS_10dictionaryE


                      1 条回复 最后回复 回复 引用
                      • 李东岳
                        李东岳 管理员 最后由 编辑

                        看起来像是调用了一个过时的lib,库和求解器全部重新编译一下

                        线上CFD课程开始报名:http://www.dyfluid.com/class.html

                        CFD高性能服务器 http://dyfluid.com/servers.html

                        G 1 条回复 最后回复 回复 引用
                        • G
                          general @李东岳 最后由 编辑

                          @东岳 好的谢谢东岳老师,我试一下

                          1 条回复 最后回复 回复 引用
                          • J
                            Jhhu 最后由 李东岳 编辑

                            @general 在 OpenFoam定义新边界条件问题---通量边界 中说:

                            您好,您最后这个边界条件成功了吗?是变通量边界条件吗?谢谢!

                            G 1 条回复 最后回复 回复 引用
                            • G
                              general @Jhhu 最后由 编辑

                              @Jhhu 你好,我最后没有成功,由于时间很紧张,还是使用了商用软件。

                              1 条回复 最后回复 回复 引用
                              • First post
                                Last post
