    OpenFOAM中cyclicAMI周期边界在有边界层时出现问题

    OpenFOAM
    边界层 renumbermesh openfoam 周期边界 cyclicami
    3
    5
    1779
    正在加载更多帖子
    • 从旧到新
    • 从新到旧
    • 最多赞同
    回复
    • 在新帖中回复
    登录后回复
    此主题已被删除。只有拥有主题管理权限的用户可以查看。
    • F
      Foamer24 最后由 编辑

      各位专家好,小弟最近用OpenFOAM计算三维圆柱绕流,提供了两个算例,一个可算的例子适合新手入门;一个出错的例子,出错原因仅仅因为将最小网格高度从第一个例子的0.001m变为0.00001m。这种对靠近壁面的边界层网格加密操作,在工程中经常需要,难以避免,烦请各位大神指教。:zoule: :zoule:

      第一个例子的第一层网格高度(即最小网格高度)为0.001m,可以正常计算,该算例地址为 https://www.jianguoyun.com/p/DQL0lW8QgOLABxjSjroB

      详细参数如下:

      • 边界条件:圆柱wall,圆柱两端cyclicAMI周期边界,两周期边界间距为1,其余为远场边界patch;
      • 求解器:可压缩流求解器HISA(使用git clone https://gitlab.com/hisa/hisa.git 下载,用./Allwmake安装);
      • 网格绘制:Pointwise(能算的网格,最小网格高度0.001m;不能算的网格,最小高度0.00001m)。

      具体操作如下:

      //注意边界条件已设好,若未设好需额外用createPatch运行system/createPatchDict
      //网格尺寸缩放,这里已经缩放完了,所以都是1
      transformPoints -scalle '(1 1 1)'
      //网格重新排序
      renumberMesh -overwrite
      //添加周期边界
      setSet
      faceSet  AMI  new  patchToFace  wall1
      faceSet  AMI  add  patchToFace  wall2
      quit
      setsToZones –noFlipMap
      //开始单核串行计算
      hisa
      //开始多核并行计算
      mpirun -np 4 hisa -parallel


      第二个不能正常计算的算例,仅在同一套网格中加密第一层网格高度到0.00001m,算例设置同上,地址为 https://www.jianguoyun.com/p/DYRDSoMQgOLABxjxjroB 。在不使用renumberMesh -overwrite操作时,可以单核串行计算,但是并行时会出现下面的错误:

      /*---------------------------------------------------------------------------*\
        =========                 |
        \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
         \\    /   O peration     | Website:  https://openfoam.org
          \\  /    A nd           | Version:  6
           \\/     M anipulation  |
      \*---------------------------------------------------------------------------*/
      Build  : 6-76a8284120c3
      Exec   : hisa -parallel
      Date   : May 02 2019
      Time   : 08:38:04
      Host   : "localhost.localdomain"
      PID    : 37453
      I/O    : uncollated
      Case   : /home/xters/Desktop/cylinder_bl
      nProcs : 4
      Slaves :
      3
      (
      "localhost.localdomain.37454"
      "localhost.localdomain.37455"
      "localhost.localdomain.37456"
      )

      Pstream initialized with:
          floatTransfer      : 0
          nProcsSimpleSum    : 0
          commsType          : nonBlocking
          polling iterations : 0
      sigFpe : Enabling floating point exception trapping (FOAM_SIGFPE).
      fileModificationChecking : Monitoring run-time modified files using timeStampMaster (fileModificationSkew 10)
      allowSystemOperations : Allowing user-supplied system call operations

      // * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
      Create time

      Overriding DebugSwitches according to controlDict
          cyclicAMI       ;

      Create mesh for time = 0, region region0
      Creating static mesh

      [1] cyclicAMIPolyPatch::calcTransforms : patch:wall1 Specified translation : (0 0 -1)
      [1] patch: wall1
      [1]     forwardT = 0()
      [1]     reverseT = 0()
      [1]     separation = 1((0 0 -1))
      [1]     collocated = 1(0)
      [1]
      [1] cyclicAMIPolyPatch::calcTransforms : patch:wall2 Specified translation : (0 0 1)
      [1] patch: wall2
      [1]     forwardT = 0()
      [1]     reverseT = 0()
      [1]     separation = 1((0 0 1))
      [1]     collocated = 1(0)
      [1]
      [2] cyclicAMIPolyPatch::calcTransforms : patch:wall1 Specified translation : (0 0 -1)
      [2] patch: wall1
      [2]     forwardT = 0()
      [2]     reverseT = 0()
      [2]     separation = 1((0 0 -1))
      [2]     collocated = 1(0)
      [2]
      [2] cyclicAMIPolyPatch::calcTransforms : patch:wall2 Specified translation : (0 0 1)
      [2] patch: wall2
      [2]     forwardT = 0()
      [2]     reverseT = 0()
      [2]     separation = 1((0 0 1))
      [2]     collocated = 1(0)
      [2]
      [3] cyclicAMIPolyPatch::calcTransforms : patch:wall1 Specified translation : (0 0 -1)
      [3] patch: wall1
      [3]     forwardT = 0()
      [3]     reverseT = 0()
      [3]     separation = 1((0 0 -1))
      [3]     collocated = 1(0)
      [3]
      [3] cyclicAMIPolyPatch::calcTransforms : patch:wall2 Specified translation : (0 0 1)
      [3] patch: wall2
      [3]     forwardT = 0()
      [3]     reverseT = 0()
      [3]     separation = 1((0 0 1))
      [3]     collocated = 1(0)
      [3]
      [0] cyclicAMIPolyPatch::calcTransforms : patch:wall1 Specified translation : (0 0 -1)
      [0] patch: wall1
      [0]     forwardT = 0()
      [0]     reverseT = 0()
      [0]     separation = 1((0 0 -1))
      [0]     collocated = 1(0)
      [0]
      [0] cyclicAMIPolyPatch::calcTransforms : patch:wall2 Specified translation : (0 0 1)
      [0] patch: wall2
      [0]     forwardT = 0()
      [0]     reverseT = 0()
      [0]     separation = 1((0 0 1))
      [0]     collocated = 1(0)
      [0]
      Steady-state analysis detected

      pseudoTime: tolerance = 1e-06 (1e-06 1e-06 1e-06) 1e-06 , relTol = 0 (0 0 0) 0

      Local timestepping selected

      Reading thermophysical properties

      Selecting thermodynamics package
      {
          type            hePsiThermo;
          mixture         pureMixture;
          transport       sutherland;
          thermo          hConst;
          equationOfState perfectGas;
          specie          specie;
          energy          sensibleInternalEnergy;
      }

      AMI: Creating addressing and weights between 39880 source faces and 39880 target faces
      [3] cyclicAMIPolyPatch : wall1 constructed AMI with
      [3]     srcAddress:9980
      [3]     tgAddress :9960
      [3]
      [1] cyclicAMIPolyPatch : wall1 constructed AMI with
      [1]     srcAddress:9980
      [1]     tgAddress :9960
      [1]
      [2] cyclicAMIPolyPatch : wall1 constructed AMI with
      [2]     srcAddress:9960
      [2]     tgAddress :9980
      [2]
      AMI: Patch source sum(weights) min/max/average = 1, 1, 1
      AMI: Patch target sum(weights) min/max/average = 1, 1, 1
      [0] cyclicAMIPolyPatch : wall1 constructed AMI with
      [0]     srcAddress:9960
      [0]     tgAddress :9980
      [0]

      Viscous analysis detected

      Reading field U

      Creating turbulence model

      Selecting turbulence model type RAS
      Selecting RAS turbulence model SpalartAllmaras
      Selecting patchDistMethod meshWave
      RAS
      {
          RASModel        SpalartAllmaras;
          turbulence      on;
          printCoeffs     on;
          sigmaNut        0.66666;
          kappa           0.41;
          Cb1             0.1355;
          Cb2             0.622;
          Cw2             0.3;
          Cw3             2;
          Cv1             7.1;
          Cs              0.3;
      }


      Creating flux scheme

      Selecting flux scheme AUSMPlusUp

      Initial pseudo Courant No: Min: 0.001 Mean: 0.001 Max: 0.001


      Starting pseudotime iteration loop

      Time = 1

      pseudoTime: iteration 1
      Pseudo Courant No: Min: 0.001 Mean: 0.001 Max: 0.001
      Pseudo deltaT: Min: 1.31771e-11 Mean: 4.2537e-08 Max: 4.91626e-08
      Solving for (rho rhoU rhoE)
      [localhost:37456] *** An error occurred in MPI_Waitall
      [localhost:37456] *** reported by process [1120337921,3]
      [localhost:37456] *** on communicator MPI COMMUNICATOR 3 SPLIT FROM 0
      [localhost:37456] *** MPI_ERR_TRUNCATE: message truncated
      [localhost:37456] *** MPI_ERRORS_ARE_FATAL (processes in this communicator will now abort,
      [localhost:37456] ***    and potentially your MPI job)
      [localhost.localdomain:37448] 3 more processes have sent help message help-mpi-errors.txt / mpi_errors_are_fatal
      [localhost.localdomain:37448] Set MCA parameter "orte_base_help_aggregate" to 0 to see all help / error messages


      使用renumberMesh -overwrite操作后,单核也会出错了,错误信息为:

      /*---------------------------------------------------------------------------*\
        =========                 |
        \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
         \\    /   O peration     | Website:  https://openfoam.org
          \\  /    A nd           | Version:  6
           \\/     M anipulation  |
      \*---------------------------------------------------------------------------*/
      Build  : 6-76a8284120c3
      Exec   : hisa
      Date   : May 02 2019
      Time   : 08:40:54
      Host   : "localhost.localdomain"
      PID    : 37564
      I/O    : uncollated
      Case   : /home/xters/Desktop/cylinder_bl
      nProcs : 1
      sigFpe : Enabling floating point exception trapping (FOAM_SIGFPE).
      fileModificationChecking : Monitoring run-time modified files using timeStampMaster (fileModificationSkew 10)
      allowSystemOperations : Allowing user-supplied system call operations

      // * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
      Create time

      Overriding DebugSwitches according to controlDict
          cyclicAMI       ;

      Create mesh for time = 0, region region0
      Creating static mesh

      cyclicAMIPolyPatch::calcTransforms : patch:wall1 Specified translation : (0 0 -1)
      patch: wall1
          forwardT = 0()
          reverseT = 0()
          separation = 1((0 0 -1))
          collocated = 1(0)

      cyclicAMIPolyPatch::calcTransforms : patch:wall2 Specified translation : (0 0 1)
      patch: wall2
          forwardT = 0()
          reverseT = 0()
          separation = 1((0 0 1))
          collocated = 1(0)

      Steady-state analysis detected

      pseudoTime: tolerance = 1e-06 (1e-06 1e-06 1e-06) 1e-06 , relTol = 0 (0 0 0) 0

      Local timestepping selected

      Reading thermophysical properties

      Selecting thermodynamics package
      {
          type            hePsiThermo;
          mixture         pureMixture;
          transport       sutherland;
          thermo          hConst;
          equationOfState perfectGas;
          specie          specie;
          energy          sensibleInternalEnergy;
      }

      #0  Foam::error::printStack(Foam::Ostream&) at ??:?
      #1  Foam::sigFpe::sigHandler(int) at ??:?
      #2  ? in "/lib64/libc.so.6"
      #3  Foam::surfaceInterpolation::makeWeights() const at ??:?
      #4  Foam::surfaceInterpolation::weights() const at ??:?
      #5  Foam::surfaceInterpolation::makeDeltaCoeffs() const at ??:?
      #6  Foam::surfaceInterpolation::deltaCoeffs() const at ??:?
      #7  Foam::fvPatch::deltaCoeffs() const at ??:?
      #8  Foam::fvPatchField<double>::snGrad() const at ??:?
      #9  Foam::heThermo<Foam::psiThermo, Foam::pureMixture<Foam::sutherlandTransport<Foam::species::thermo<Foam::hConstThermo<Foam::perfectGas<Foam::specie> >, Foam::sensibleInternalEnergy> > > >::heBoundaryCorrection(Foam::GeometricField<double, Foam::fvPatchField, Foam::volMesh>&) at ??:?
      #10  Foam::heThermo<Foam::psiThermo, Foam::pureMixture<Foam::sutherlandTransport<Foam::species::thermo<Foam::hConstThermo<Foam::perfectGas<Foam::specie> >, Foam::sensibleInternalEnergy> > > >::heThermo(Foam::fvMesh const&, Foam::word const&) at ??:?
      #11  Foam::psiThermo::addfvMeshConstructorToTable<Foam::hePsiThermo<Foam::psiThermo, Foam::pureMixture<Foam::sutherlandTransport<Foam::species::thermo<Foam::hConstThermo<Foam::perfectGas<Foam::specie> >, Foam::sensibleInternalEnergy> > > > >::New(Foam::fvMesh const&, Foam::word const&) at ??:?
      #12  Foam::autoPtr<Foam::psiThermo> Foam::basicThermo::New<Foam::psiThermo>(Foam::fvMesh const&, Foam::word const&) at ??:?
      #13  Foam::psiThermo::New(Foam::fvMesh const&, Foam::word const&) at ??:?
      #14  Foam::hisaModule::initialise() at ~/Desktop/hisa/src/modules/hisa/createFields.H:29 (discriminator 1)
      #15  ? at ??:?
      #16  __libc_start_main in "/lib64/libc.so.6"
      #17  ? at ??:?
      Floating point exception (core dumped)

      1 条回复 最后回复 回复 引用
      • 李东岳
        李东岳 管理员 最后由 编辑

        因为你用的别的求解器,不确定是不是求解器的问题,你用出问题的网格,换个求解释发散么?你的第二个例子串行计算

        线上CFD课程开始报名:http://www.dyfluid.com/class.html

        CFD高性能服务器 http://dyfluid.com/servers.html

        F 1 条回复 最后回复 回复 引用
        • 宝
          宝丁 最后由 编辑

          是不是你的几何精度问题,壁面网格这么密,画网格的时候如果几何精度太差可能画出来的网格可能会有问题。这里的几何精度既包括建模软件里面的精度,也包括画网格软件转换的精度。如果直接在画网格的软件里面画几何精度应该会好一些,ICEM里面会有调精度的选项,Pointwise不清楚

          F 1 条回复 最后回复 回复 引用
          • F
            Foamer24 @宝丁 最后由 编辑

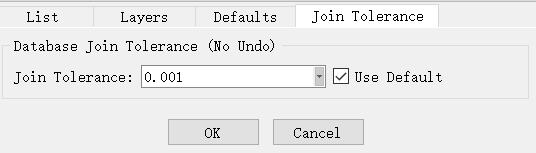

            @宝丁 您好!根据您的指导,我查看了Pointwise里面的设置,在Edit—Join Tolerance中有一个设置几何精度的参数,默认值是0.001,我很难确定这个有没有影响,因为以前用fluent计算的时候,这个参数一直是默认的。

            1 条回复 最后回复 回复 引用
            • F
              Foamer24 @李东岳 最后由 编辑

              @东岳 您好!cyclicAMI和renumberMesh之间还存在一些bug,我将cyclicAMI改为cyclic,还是类似的操作,就可以了。:ok: 需要注意的是:Pointwise导出含周期性边界的网格时,需要先将周期边界设置为patch,然后在openfoam中用createPatchDict将其设为cyclic,就能renumberMesh了。当遇到下面的错误时,提高boundary文件的matchTolerance的值就可以了,不过网格也不能太差。

              --> FOAM FATAL ERROR : face 0 and 65 areas do not match by 0.000222148% -- possible face ordering problem
              From function cyclicFvPatch::makeWeights(scalarField& w) const
              in file meshes/fvMesh/fvPatches/derivedFvPatches/cyclicFvPatch/cyclicFvPatch.C at line 62.

              1 条回复 最后回复 回复 引用
