对旋转机械进行计算时的错误提示



  • 大家好,最近在做旋转机械内流场的计算工作,使用了AMI动静交接面,采用MRF坐标系,可是当我开始计算时,却出现了以下错误提示。。。觉得很可能是边界条件设置有问题。。贴一下边界条件设置文件,如下。求大神指教!

    lizehao@lizehao-Z97-HD3:~/openFoam/run/tubulence_model_test_on_centrifugal_pump/mesh5/merge_grid$ simpleFoam |tee simpleFoam.log
    /*---------------------------------------------------------------------------*\
    | =========                 |                                                 |
    | \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox           |
    |  \\    /   O peration     | Version:  4.1                                   |
    |   \\  /    A nd           | Web:      www.OpenFOAM.org                      |
    |    \\/     M anipulation  |                                                 |
    \*---------------------------------------------------------------------------*/
    Build  : 4.1
    Exec   : simpleFoam
    Date   : Dec 08 2017
    Time   : 11:09:02
    Host   : "lizehao-Z97-HD3"
    PID    : 30537
    Case   : /home/lizehao/openFoam/run/tubulence_model_test_on_centrifugal_pump/mesh5/merge_grid
    nProcs : 1
    sigFpe : Enabling floating point exception trapping (FOAM_SIGFPE).
    fileModificationChecking : Monitoring run-time modified files using timeStampMaster
    allowSystemOperations : Allowing user-supplied system call operations

    // * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
    Create time

    Create mesh for time = 0


    SIMPLE: convergence criteria
        field p	 tolerance 1e-05
        field U	 tolerance 1e-05
        field k	 tolerance 1e-05
        field epsilon	 tolerance 1e-05
        field nut	 tolerance 1e-05

    Reading field p

    Reading field U

    Reading/calculating face flux field phi

    AMI: Creating addressing and weights between 18792 source faces and 2424 target faces
    AMI: Patch source sum(weights) min/max/average = 0.992729, 1.00082, 0.999897
    AMI: Patch target sum(weights) min/max/average = 0, 1.00061, 0.580281
    AMI: Creating addressing and weights between 7722 source faces and 3861 target faces
    AMI: Patch source sum(weights) min/max/average = 0.0916406, 1, 0.994738
    AMI: Patch target sum(weights) min/max/average = 0, 1, 0.877149
    AMI: Creating addressing and weights between 7722 source faces and 3861 target faces
    AMI: Patch source sum(weights) min/max/average = 0.0916406, 1, 0.994738
    AMI: Patch target sum(weights) min/max/average = 0, 1, 0.877149
    Selecting incompressible transport model Newtonian
    Selecting turbulence model type RAS
    Selecting RAS turbulence model kEpsilon
    kEpsilonCoeffs
    {
        Cmu             0.09;
        C1              1.44;
        C2              1.92;
        C3              -0.33;
        sigmak          1;
        sigmaEps        1.3;
    }

    Creating MRF zone list from MRFProperties
        creating MRF zone: MRF1
    No finite volume options present


    Starting time loop

    Time = 1

    smoothSolver:  Solving for Ux, Initial residual = 1, Final residual = 0.0389849, No Iterations 2
    smoothSolver:  Solving for Uy, Initial residual = 1, Final residual = 0.0580972, No Iterations 2
    smoothSolver:  Solving for Uz, Initial residual = 1, Final residual = 0.0935053, No Iterations 1
    #0  Foam::error::printStack(Foam::Ostream&) at ??:?
    #1  Foam::sigFpe::sigHandler(int) at ??:?
    #2  ? in "/lib/x86_64-linux-gnu/libc.so.6"
    #3  Foam::divide(Foam::Field<double>&, double const&, Foam::UList<double> const&) at ??:?
    #4  Foam::tmp<Foam::GeometricField<double, Foam::fvPatchField, Foam::volMesh> > Foam::operator/<Foam::fvPatchField, Foam::volMesh>(Foam::dimensioned<double> const&, Foam::tmp<Foam::GeometricField<double, Foam::fvPatchField, Foam::volMesh> > const&) at ??:?
    #5  ? at ??:?
    #6  __libc_start_main in "/lib/x86_64-linux-gnu/libc.so.6"
    #7  ? at ??:?



    U文件,进口fixedValue,出口zeroGradient,壁面noslip,交接面cyclicAMI

    /*--------------------------------*- C++ -*----------------------------------*\
    | =========                 |                                                 |
    | \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox           |
    |  \\    /   O peration     | Version:  4.1                                   |
    |   \\  /    A nd           | Web:      www.OpenFOAM.org                      |
    |    \\/     M anipulation  |                                                 |
    \*---------------------------------------------------------------------------*/
    FoamFile
    {
        version     2.0;
        format      ascii;
        class       volVectorField;
        object      U;
    }
    // * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

    dimensions      [0 1 -1 0 0 0 0];

    internalField   uniform (2.744 0 0);

    boundaryField
    {
        wall1_runner
        {
            type            noSlip;
        }
        wall2_runner
        {
            type            noSlip;
        }
        wall3_runner
        {
            type            noSlip;
        }
        wall4_runner
        {
            type            noSlip;
        }
        interface_runner
        {
            type            cyclicAMI;
            value           uniform (2.744 0 0);
        }
        interface1_runner
        {
            type            cyclicAMI;
            value           uniform (2.744 0 0);
        }
        interface2_runner
        {
            type            cyclicAMI;
            value           uniform (2.744 0 0);
        }
        wall2_suction
        {
            type            noSlip;
        }
        outflow_suction
        {
            type            noSlip;
        }
        wall1_suction
        {
            type            noSlip;
        }
        inlet
        {
            type            fixedValue;
            value           uniform (2.744 0 0);
        }
        interFace1_suction
        {
            type            cyclicAMI;
            value           uniform (2.744 0 0);
        }
        interFace2_suction
        {
            type            cyclicAMI;
            value           uniform (2.744 0 0);
        }
        wall1_volute
        {
            type            noSlip;
        }
        interface_volute
        {
            type            cyclicAMI;
            value           uniform (2.744 0 0);
        }
        wall2_volute
        {
            type            noSlip;
        }
        outlet_volute
        {
            type            zeroGradient;
        }
    }


    P文件,进口及壁面zeroGradient,出口fixedValue,交接面cyclicAMI

    /*--------------------------------*- C++ -*----------------------------------*\
    | =========                 |                                                 |
    | \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox           |
    |  \\    /   O peration     | Version:  4.1                                   |
    |   \\  /    A nd           | Web:      www.OpenFOAM.org                      |
    |    \\/     M anipulation  |                                                 |
    \*---------------------------------------------------------------------------*/
    FoamFile
    {
        version     2.0;
        format      ascii;
        class       volScalarField;
        object      p;
    }
    // * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

    dimensions      [0 2 -2 0 0 0 0];

    internalField   uniform 0;

    boundaryField
    {
        wall1_runner
        {
            type            zeroGradient;
        }
        wall2_runner
        {
            type            zeroGradient;
        }
        wall3_runner
        {
            type            zeroGradient;
        }
        wall4_runner
        {
            type            zeroGradient;
        }
        interface_runner
        {
            type            cyclicAMI;
            value           uniform 0;
        }
        interface1_runner
        {
            type            cyclicAMI;
            value           uniform 0;
        }
        interface2_runner
        {
            type            cyclicAMI;
            value           uniform 0;
        }
        wall2_suction
        {
            type            zeroGradient;
        }
        outflow_suction
        {
            type            zeroGradient;
        }
        wall1_suction
        {
            type            zeroGradient;
        }
        inlet
        {
            type            zeroGradient;
        }
        interFace1_suction
        {
            type            cyclicAMI;
            value           uniform 0;
        }

        interFace2_suction
        {
            type            cyclicAMI;
            value           uniform 0;
        }

        wall1_volute
        {
            type            zeroGradient;
        }
        interface_volute
        {
            type            cyclicAMI;
            value           uniform 0;
        }

        wall2_volute
        {
            type            zeroGradient;
        }
        outlet_volute
        {
            type            fixedValue;
            value           uniform 0;
        }
    }


    k文件,进口fixedValue,出口inletoutlet,壁面kqRWallFunction,交接面cyclicAMI

    /*--------------------------------*- C++ -*----------------------------------*\
    | =========                 |                                                 |
    | \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox           |
    |  \\    /   O peration     | Version:  4.1                                   |
    |   \\  /    A nd           | Web:      www.OpenFOAM.org                      |
    |    \\/     M anipulation  |                                                 |
    \*---------------------------------------------------------------------------*/
    FoamFile
    {
        version     2.0;
        format      ascii;
        class       volScalarField;
        location    "0";
        object      k;
    }
    // * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

    dimensions      [0 2 -2 0 0 0 0];

    internalField   uniform 0.01;

    boundaryField
    {
        wall1_runner
        {
            type            kqRWallFunction;
            value           uniform 0.01;
        }

        wall2_runner
        {
            type            kqRWallFunction;
            value           uniform 0.01;
        }
        wall3_runner
        {
            type            kqRWallFunction;
            value           uniform 0.01;
        }

        wall4_runner
        {
            type            kqRWallFunction;
            value           uniform 0.01;
        }
        interface_runner
        {
            type            cyclicAMI;
            value           $internalField;
        }

        interface1_runner
        {
            type            cyclicAMI;
            value           $internalField;
        }
        interface2_runner
        {
            type            cyclicAMI;
            value           $internalField;
        }
        wall2_suction
        {
            type            kqRWallFunction;
            value           uniform 0.01;
        }
        outflow_suction
        {
            type            kqRWallFunction;
            value           uniform 0.01;
        }
        wall1_suction
        {
            type            kqRWallFunction;
            value           uniform 0.01;
        }
        inlet
        {
            type            fixedValue;
            value           uniform 0.01;
        }
        interFace1_suction
        {
            type            cyclicAMI;
            value           $internalField;
        }
        interFace2_suction
        {
            type            cyclicAMI;
            value           $internalField;
        }
        wall1_volute
        {
            type            kqRWallFunction;
            value           uniform 0.01;
        }
        interface_volute
        {
            type            cyclicAMI;
            value           $internalField;
        }
        wall2_volute
        {
            type            kqRWallFunction;
            value           uniform 0.01;
        }
        outlet_volute
        {
            type            inletOutlet;
            inletValue      $internalField;
            value           $internalField;
        }

    }



    epsilon文件,进口fixedValue,出口inletoutlet,壁面epsilonWallFunction,交接面cyclicAMI

    /*--------------------------------*- C++ -*----------------------------------*\
    | =========                 |                                                 |
    | \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox           |
    |  \\    /   O peration     | Version:  4.1                                   |
    |   \\  /    A nd           | Web:      www.OpenFOAM.org                      |
    |    \\/     M anipulation  |                                                 |
    \*---------------------------------------------------------------------------*/
    FoamFile
    {
        version     2.0;
        format      ascii;
        class       volScalarField;
        location    "0";
        object      epsilon;
    }
    // * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

    dimensions      [0 2 -3 0 0 0 0];

    internalField   uniform 0.0095;

    boundaryField
    {
        wall1_runner
        {
            type            epsilonWallFunction;
            value           uniform 0.0095;
        }

        wall2_runner
        {
            type            epsilonWallFunction;
            value           uniform 0.0095;
        }
        wall3_runner
        {
            type            epsilonWallFunction;
            value           uniform 0.0095;
        }

        wall4_runner
        {
            type            epsilonWallFunction;
            value           uniform 0.0095;
        }
        interface_runner
        {
            type            cyclicAMI;
            value           $internalField;
        }

        interface1_runner
        {
            type            cyclicAMI;
            value           $internalField;
        }
        interface2_runner
        {
            type            cyclicAMI;
            value           $internalField;
        }
        wall2_suction
        {
            type            epsilonWallFunction;
            value           uniform 0.0095;
        }
        outflow_suction
        {
            type            epsilonWallFunction;
            value           uniform 0.0095;
        }
        wall1_suction
        {
            type            epsilonWallFunction;
            value           uniform 0.0095;
        }
        inlet
        {
            type            fixedValue;
            value           uniform 0.0095;
        }
        interFace1_suction
        {
            type            cyclicAMI;
            value           $internalField;
        }
        interFace2_suction
        {
            type            cyclicAMI;
            value           $internalField;
        }
        wall1_volute
        {
            type            epsilonWallFunction;
            value           uniform 0.0095;
        }
        interface_volute
        {
            type            cyclicAMI;
            value           $internalField;
        }
        wall2_volute
        {
            type            epsilonWallFunction;
            value           uniform 0.0095;
        }
        outlet_volute
        {
            type            inletOutlet;
            inletValue      $internalField;
            value           $internalField;
        }

    }



  • 只能看出来

    Foam::divide(Foam::Field<double>&, double const&, Foam::UList<double> const&) at ??:?


    可能除以0了,但是并不知道是哪里出去了,需要更深度的debug



  • 嗯嗯:crying: 我看到CFD-online上一些前辈们也是这样说,然后我就懵圈了,完全不知道应该怎样去debug,不知道应该遵循一个怎样的流程或原则。。:crying:



  • 使用了AMI动静交接面,采用MRF坐标系

    为什么同时使用AMI和MRF?



  • 嗯。。因为网格划分时把动静部件分开划分,然后合并的时候有交接面,所以用了AMI。。然后我是采用多重参考系定义速度。。难道它们之间是有矛盾的?:big_mouth:



  • 这样的话你用AMI就不需要用MRF了 :big_mouth:

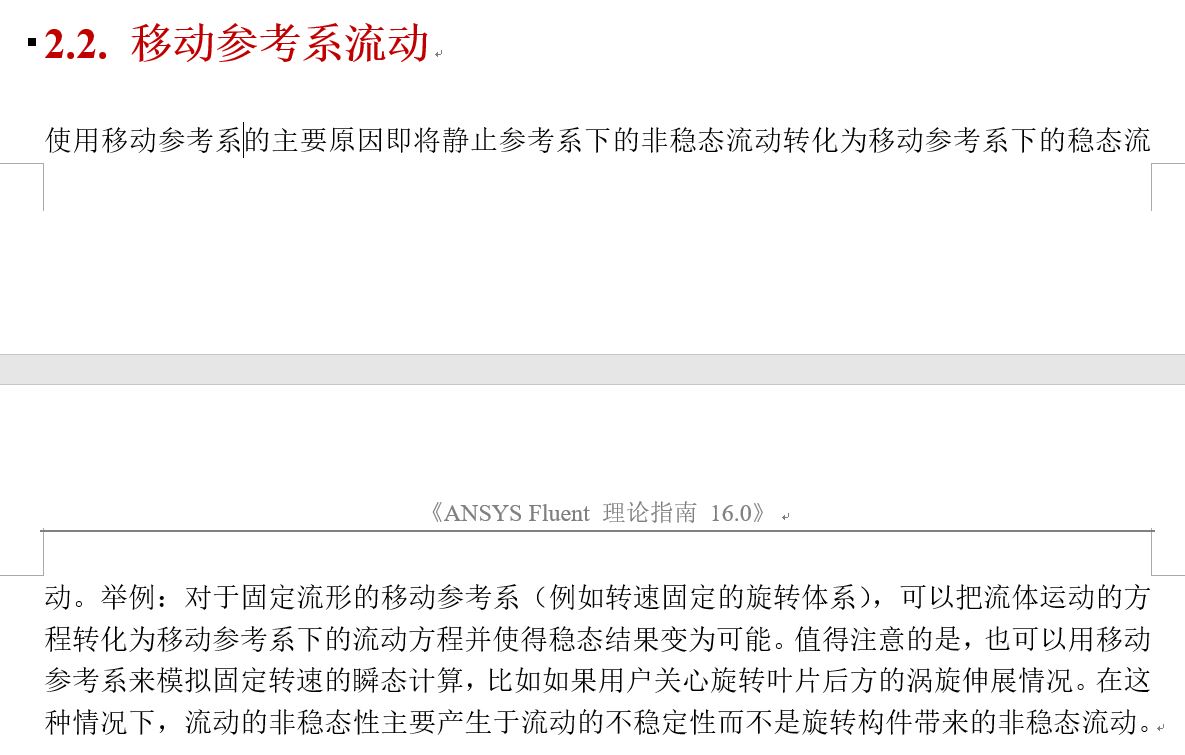

  • 嗯。。可我目前算的是稳态,不用MRF的话怎么处理内部的旋转部件呢:surprised:



  • 估计你之前用过Fluent,OpenFOAM里面MRF也可以瞬态,拟瞬态。
